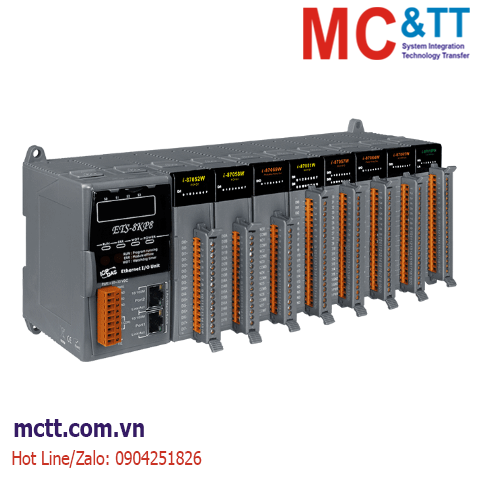

Module mở rộng Ethernet Modbus TCP & OPC UA, MQTT 8 khe cắm IO ICP DAS ETS-8KP8 CR
Features
- 8 I/O slots for expansion of I-87K and I-8K series modules
- 2-port Ethernet switch for daisy-chain topology
- Automatic I/O module configuration
- Supports Modbus/TCP Security
- Supports OPC UA、MQTT with TLS
- Enhanced DoS protection
- Supports http/https Web Server
- Supports http/https Web Server
- Operating temperature: -25 to +75°C
- Fast boot time (< 5 seconds)
Introduction
The ETS-8KP8 is an Ethernet I/O expansion unit with 8 I/O slots for Ethernet expansion of I-8K and I-87K series I/O modules. It provides two Ethernet switch ports for daisy-chain topologies. This unit can be used to build a Daisy Chain network, simplifying configuration and maintenance, reducing cabling costs and switch requirements, and improving network scalability. Its automatic LAN Bypass function ensures continued communication within the Daisy Chain network when individual modules lose power, maintaining Ethernet communication stability. Designed for use in harsh and noisy environments, the hardware features a wide power input range (10 to 30 VDC), isolated power input, and a wide operating temperature range (-25 to +75°C).
The unit supports over 100 I/O modules, including analog I/O, digital I/O, and DI/counter modules. To simplify I/O module installation and maintenance, the unit offers automatic I/O module configuration, LED indicators for fault detection, dual watchdog timers to maintain system operation for enhanced reliability and stability, a watchdog timer with a specified safety threshold in the event of a connection loss, and configurable startup and safety thresholds.
The secure Ethernet I/O expansion unit features multiple security mechanisms, providing comprehensive protection for industrial communications. It supports multiple Industrial IoT protocols, including Modbus, OPC UA Server/Client, MQTT Client, and LwM2M Client. Optional TLS/DTLS communication certificates and encryption provide additional protection for valuable data and devices, preventing theft or tampering during transmission.
Applications
- Industry 4.0
- AIoT Smart Factory/Manufacturing
- Building/Factory/Machinery Automation
- Remote/Environmental Monitoring
Specifications
| Software |
| Service |
• Web Interface for Configuration
• IF-THEN-ELSE Logic operation
• I/O channel monitoring and control
• Timer operation
• Schedule operation
• Internal Register operation
• Email sending function |
| Main Unit |
| Watchdog Timer |
Module, Communication (Programmable) |
| Display |
| Type |
5 x Digit 7 Segment LED Display |
| LED Indicators |
| Status |
1 x Run, 1x Module offline, 1 x WDT, 1 x Power |
| I/O Expansion |
| I/O Type |
I-87K, I-8K I/O series |
| Slots |
8 |
| HMI |
| Push Button |
4 (Mode, Set, Up, Down，Reset) |
| Ethernet |
| Ports |
2 x RJ-45, 10/100 Base-TX (Switch port) |
| Protocol |
Modbus TCP, Modbus TCP/TLS, Modbus UDP, OPC UA, MQTT, Rest API, CoAP, LwM2M, SNMP, SMTP, SNTP, HTTP/HTTPS |
| COM Ports |
| Ports |
1 x RS-232 |
| Protocol |
Modbus RTU/ASCII Slave |
| Power |
| Input Range |
+10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs |
Yes |
| Consumption |
2.4 W |
| Mechanical |
| Dimensions (mm) |
312 x 132 x 111 (W x L x H) |
| Installation |
DIN-Rail, Wall mounting |
| Cooling Type |
CPU heatsink/fanless |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +75 °C |
| Humidity |
10 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ETS-8KP8 CR |
8-slot Security Ethernet I/O Expansion Unit (RoHS) |
