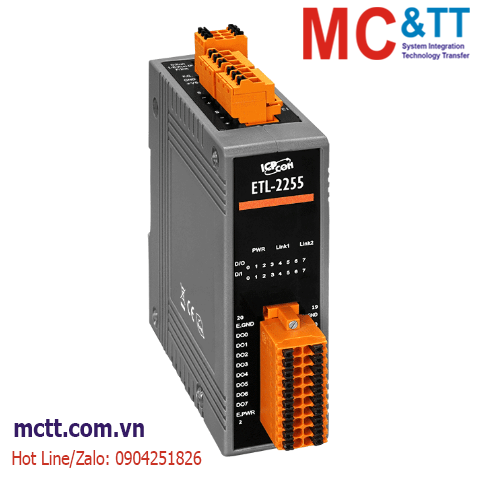

Module Ethernet T1L Modbus TCP & MQTT 8 kênh DI + 8 kênh DO ICP DAS ETL-2255 CR
Features
- Web Server for Configuration
- Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
- 2-Port 10 Base-T1L Long-Reach Industrial Ethernet
- Single Twisted-Pair, 10 Mbps / Up to 1,000 m
- Supports LAN Bypass and Daisy-chain Topology
- Supports Dual-watchdog
- I/O Pair Connection (Push and Pull)
- Built-in I/O
- 8-ch DI (Wet/Dry), 8-ch DO (Sink)
- LED Display to Indicate the I/O Status
Introduction
ETL-2255 is a 8-channel DI (Wet/Dry Contact) and 8-channel DO (Sink-type) module. Each input channel can function as a 32-bit counter, while each output channel can be configured with a power-on value and safe value, ensuring the module's safe operation in applications with hazardous voltages.
The module features a T1L design that supports transmission distances of up to 1000 m and includes a builtin 2-port Ethernet switch, facilitating a daisy-chain topology. This feature offers flexibility in device configuration, simplifies installation, and reduces infrastructure costs.
The module features optical-isolated 3000 Vrms transient overvoltage protection and does not support channel-to-channel isolation. Additionally, it provides EMS (EFT/ESD/Surge) protection and 3000 VDC I/O isolation to enhance noise protection capabilities in industrial environments.
Applications
• Factory Automation
• Machine Automation
• Building Automation
• Remote Diagnosis & Maintenance
• Testing Equipment
Specifications
| Software |
| Built-in Web Server |
Yes |
| CPU Module |
| CPU |
32-bit ARM |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| 2-way Isolation |
Ethernet: 1500 VDC
I/O: 3000 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
±2 kV for Power Line |
| LED Indicators |
| Status |
Run, Ethernet, I/O |
| Digital Input/Counter |
| Channels |
8 |
| Type |
Dry Contact
Wet Contact |
| Sink/Source (NPN/PNP) |
Dry: Source
Wet: Sink/Source |
| ON Voltage Level |
Dry: Close to GND
Wet: +5 ~ +50 VDC |
| OFF Voltage Level |
Dry: Open
Wet: +1 VDC (max.) |
| Max. Counts |
4,294,967,295 (32-bit) |
| Frequency |
3 kHz |
| Input Impedance |
7.5 kΩ |
| Overvoltage Protection |
+70 VDC |
| Low Pass Filter |
1 ~ 6500 ms (0.08 Hz ~ 500 Hz) |
| Digital Output |
| Channels |
8 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+3.5 ~ +50 VDC |
| Load Current |
650 mA/channel |
| Overvoltage Protection |
+60 VDC |
| Overload Protection |
1.4 A (with short-circuit protection) |
| Short-circuit Protection |
Yes |
| Power on Value |
Programmable |
| Safe Value |
Programmable |
| T1L Communication |
| Ports |
2 x 10 Base-T1L, Switch Ports |
| Standards |
IEEE802.3cg |
| Protocol |
Modbus TCP, Modbus UDP, MQTT, SNMP V2c |
| Access Control |
Password and IP Filter |
| Transmission Distance |
1000 m (max.) |
| Connector |
3-pin Spring Clamp |
| Cable Type |
Shielded Twisted Pair (STP), 18 AWG ~ 24 AWG |
| LAN bypass |
Yes |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
3.5 W (max.) |
| Powered from Terminal Block |
+10 ~ +30 VDC |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
33 x 136 x 108 (W x L x H) |
| Installation |
DIN-Rail mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ETL-2255 CR |
Ethernet I/O Module with 2-port T1L Ethernet Switch, 8-ch DI, 8-ch DO (Sink) (RoHS) |
