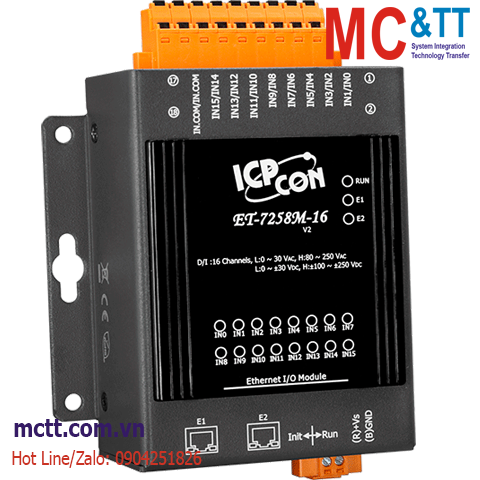

Module 2 cổng Ethernet Modbus TCP 16 kênh DI ICP DAS ET-7258M-16 CR

Chia sẻ:
Mã sản phẩm: ET-7258M-16
Thương hiệu: ICP DAS
Tình trạng:

Ethernet I/O Module with 2-port Ethernet Switch and 16-ch Isolated DI

Liên hệ
Mô tả

Module 2 cổng Ethernet Modbus TCP 16 kênh DI ICP DAS ET-7258M-16 CR

Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • 2-port Ethernet Switch for Daisy-Chain Topology
  • Dual Watchdog
  • Built-in I/O
    • AC/DC Digital Input: 16 Channels

Introduction

The ET-7258M-16 provides 16 AC/DC digital input channels. Each input channel can be used as a 32-bit counter. It features optical isolation for 2500 VDC of transient over voltage protection but doesn't provide channel-to-channel isolation. It can safely be used in applications where hazardous voltages are present.

Applications

  • Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, and Testing Equipment.

Specifications

Software
Built-in Web Server Yes
CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
2-way Isolation Ethernet: 1500 VDC
I/O: 2500 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
LED Indicators
Status Run, Ethernet, I/O
Digital Input/Counter
Channels 16
Type Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level 80 to 250 VAC
±100 to ±250 VDC
OFF Voltage Level 30 VAC (max.)
±30 VDC (max.)
Max. Counts 4,294,967,295 (32-bit)
Frequency 100 Hz
Min. Pulse Width 5 ms
Input Impedance 150 kΩ
Overvoltage Protection 300 VAC
Ethernet
Ports 2 x RJ-45, 10/100 Base-TX, Switch Ports
LAN bypass Yes
Security ID, Password and IP Filter
Protocol Modbus TCP, Modbus UDP
Power
Reverse Polarity Protection Yes
Consumption 2.8 W (max.)
Powered from Terminal Block +12 to +48 VDC
Mechanical
Dimensions (mm) 97 x 130 x 38 (W x L x H)
Installation DIN-Rail mounting
Environment
Operating Temperature -25 to +75°C
Storage Temperature -30 to +80°C
Humidity 10 to 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

ET-7258M-16     CR  Ethernet I/O Module with 2-port Ethernet Switch, with 16-channel Digital Input (RoHS)
