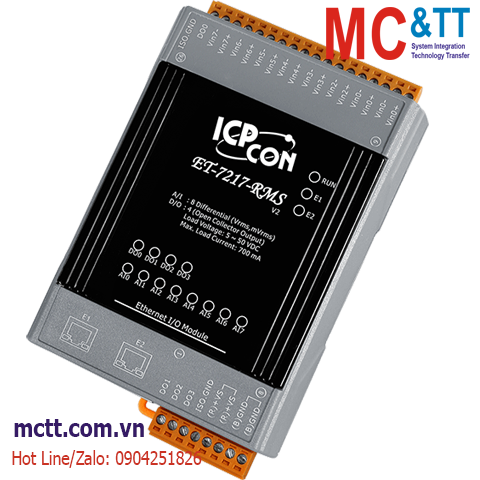

Module 2 cổng Ethernet Modbus TCP 8 kênh AI RMS + 4 kênh DO ICP DAS ET-7217RMS CR
Features
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- 2-port Ethernet Switch for Daisy-Chain Topology
- Dual Watchdog
- I/O Pair Connection
- Built-in I/O
- AI: 8 Channels True RMS Input
- DO: 4 Channels
Introduction
The ET-7217RMS is an 8-channel differential AC input and 4-channel digital outputs module that is used to convert the AC input signals to their True RMS DC values. The RMS input range can be from +150 mVrms to +10 Vrms, and each channel can be configured individually. The ET-7217RMS is a complete, high-accuracy, RMS-to-DC converter that computes the True RMS DC value of any complex waveform. It also features 4 kV ESD protection, 2500 VDC intra-module isolation, and ±35 Vrms/±28 VDC overvoltage protection.
Applications
-
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, and Testing Equipment.
Specifications
| Software |
| Built-in Web Server |
Yes |
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| 2-way Isolation |
Ethernet: 1500 VDC
I/O: 2500 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±2 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
±2 kV for Power Line |
| LED Indicators |
| Status |
Run, Ethernet, I/O |
| Analog Input |
| Channels |
8 (Differential) |
| Type |
True RMS |
| Resolution |
16-bit |
| Accuracy |
Sinusoid:
50/60 Hz: ±0.15% of FSR
45 Hz to 10 kHz: ±0.5% of FSR
Non-Sinusoid:
Crest Factor = 1 to 2: ±0.2% of FSR
Crest Factor = 2 to 3: ±0.35% of FSR
DC:
0 to 10 Vrms / 0 to 5 Vrms / 0 to 1 Vrms: ±0.3% of FSR
0 to 500 mVrms / 0 to 150 mVrms: ±0.7% of FSR |
| Sampling Rate |
10 Hz (total channels) |
| Bandwidth |
15.7 Hz |
| Input Impedance |
>2 MΩ |
| Common Mode Rejection |
86 dB (min.) |
| Normal Mode Rejection |
100 dB |
| Overvoltage Protection |
±35 Vrms/±28 VDC |
| Individual Channel Configuration |
Yes |
| Zero Drift |
±20 μV/°C |
| Span Drift |
±25 ppm/°C |
| Digital Output |
| Channels |
4 |
| Type |
Isolated Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+5 to +50 VDC |
| Load Current |
700 mA/channel |
| Overvoltage Protection |
+60 VDC |
| Overload Protection |
1.4 A |
| Short-circuit Protection |
Yes |
| Power on Value |
Programmable |
| Safe Value |
Programmable |
| Ethernet |
| Ports |
2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| LAN bypass |
Yes |
| Security |
ID, Password and IP Filter |
| Protocol |
Modbus TCP, Modbus UDP |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
4.2 W (max.) |
| Powered from Terminal Block |
+12 to +48 VDC |
| Mechanical |
| Dimensions (mm) |
76 x 120 x 38 (W x L x H) |
| Installation |
DIN-Rail mounting |
| Environment |
| Operating Temperature |
-25 to +75°C |
| Storage Temperature |
-30 to +80°C |
| Humidity |
10 to 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ET-7217RMS CR |
Ethernet I/O Module with 2-port Ethernet Switch, with 8-ch AI, 4-ch DO (RoHS) |
