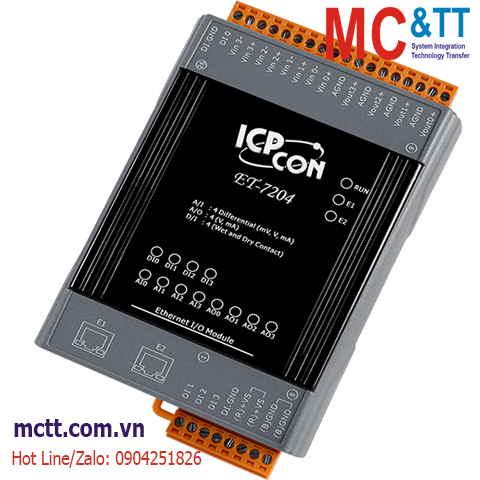

Module 2 cổng Ethernet Modbus TCP 4 kênh AI + 4 kênh AO + 4 kênh DI ICP DAS ET-7204 CR
Features
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- 2-port Ethernet Switch for Daisy-Chain Topology
- Dual Watchdog
- I/O Pair Connection
- Built-in I/O
- AI: 4 Channels
- AO: 4 Channels
- DI/Counter: 4 Channels
Introduction
The ET-7204 is a multi-function module with 4-channel analog inputs, 4-channel analog outputs, 4-channel digital inputs. It provides various programmable analog inputs (+/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA), and analog outputs (+/-5 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA). Each analog input is allowed to configure a proper range with 240 Vrms high voltage protection. Each analog input/output can be programmed to accept current or voltage as input/output depending upon the position of corresponding jumper.
Applications
-
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, and Testing Equipment.
Specifications
| Software |
| Built-in Web Server |
Yes |
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| 2-way Isolation |
Ethernet: 1500 VDC
I/O: 2500 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±2 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
±2 kV for Power Line |
| LED Indicators |
| Status |
Run, Ethernet, I/O |
| Analog Input |
| Channels |
4 (Differential) |
| Type |
Voltage
Current |
| Range |
±500 mV, ±1 V, ±5 V, ±10 V
0 to 20 mA, ±20 mA, 4 to 20 mA
(Jumper Selectable) |
| Resolution |
16-bit |
| Accuracy |
Normal Mode: ±0.1%
Fast Mode: ±0.5% or better |
| Sampling Rate |
Normal Mode: 10 Hz (total channels)
Fast Mode: 50 Hz (total channels) |
| Input Impedance |
Voltage: 2 MΩ
Current: 125 Ω |
| Common Mode Rejection |
86 dB (min.) |
| Normal Mode Rejection |
100 dB |
| Common Voltage Protection |
±200 VDC |
| Overvoltage Protection |
240 Vrms |
| Overcurrent Protection |
50 mA at 110 VDC (max.) |
| Individual Channel Configuration |
Yes |
| Open Wire Detection |
For 4 to 20 mA only |
| Zero Drift |
±20 μV/°C |
| Span Drift |
±25 ppm/°C |
| Isolation |
±400 VDC, Virtual Channel to Channel Isolation |
| Analog Output |
| Channels |
4 |
| Type |
Voltage
Current |
| Range |
+0 to +5 VDC, ±5 VDC, +0 to +10 VDC, ±10 VDC
0 to 20 mA, 4 to 20 mA
(Jumper Selectable) |
| Resolution |
12-bit |
| Accuracy |
±0.1% of FSR |
| Open Wire Detection |
For 4 to 20 mA only |
| Voltage Output Capability |
10 V @ 20 mA |
| Current Load Resistance |
400 Ω |
| Individual Channel Configuration |
Yes |
| Power-on Value |
Programmable |
| Safe Value |
Programmable |
| Digital Input/Counter |
| Channels |
4 |
| Type |
Dry Contact
Wet Contact |
| ON Voltage Level |
Dry: Open
Wet: +1 VDC (max.) |
| OFF Voltage Level |
Dry: Close to GND
Wet: +3.5 to +30 VDC |
| Max. Counts |
4,294,967,295 (32-bit) |
| Frequency |
100 Hz |
| Min. Pulse Width |
5 ms |
| Effective Distance |
500m (max.) |
| Overvoltage Protection |
+30 VDC |
| Ethernet |
| Ports |
2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| LAN bypass |
Yes |
| Security |
ID, Password and IP Filter |
| Protocol |
Modbus TCP, Modbus UDP |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
4.9 W (max.) |
| Powered from Terminal Block |
+12 to +48 VDC |
| Mechanical |
| Dimensions (mm) |
76 x 120 x 38 (W x L x H) |
| Installation |
DIN-Rail mounting |
| Environment |
| Operating Temperature |
-25 to +75°C |
| Storage Temperature |
-30 to +80°C |
| Humidity |
10 to 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ET-7204 CR |
Ethernet I/O Module with 2-port Ethernet Switch, 4-ch AI, 4-ch AO and 4-ch DI (RoHS) |
