Module 2 cổng Ethernet Modbus TCP & MQTT 8 kênh Relay Output ICP DAS ET-2268 CR

Module 2 cổng Ethernet Modbus TCP & MQTT 8 kênh Relay Output ICP DAS ET-2268 CR

Features

• Built-in Web Server
• Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
• 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
• Dual Watchdog
• I/O Pair Connection (Push and Pull)
• Built-in I/O
  • 4-channel Form A Relay Output
  • 4-channel Form C Relay Output
• LED Display to Indicate the I/O Status

Introduction

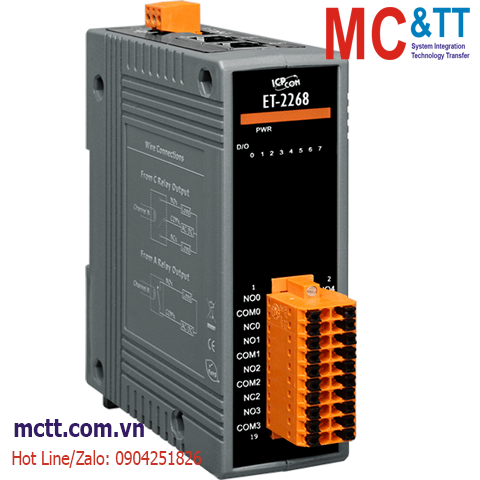

Providing a variety of digital I/O functions, the ET-2268 module is an Ethernet I/O monitoring and control module. The module can be remotely controlled through a 10/100 M Ethernet network by using Modbus TCP/UDP protocol. Modbus has become a de facto standard communications protocol industrial application and is now the most commonly available means of connecting industrial electronic devices. This makes the ET-2268 module perfectly integrated with the HMI, SCADA, PLC, or other software systems.

The ET-2268 provides 4 Form A signal Relay output and 4 Form C signal relay output channels. With 2 Ethernet ports, the ET-2268 allows a daisy chain connection which enables flexibility in locating devices; easy installation, and lower infrastructure costs. This module includes 8 LED indicators that can be used to monitor the Relay Output status, and options are provided that allow power-on and safe Digital Output values to be configured. It features 8 kV ESD, 4 kV EFT, and 3 kV surge protection to enhance noise protection capabilities in industrial environments. The ET-2268 is the ideal solution for small signal switching.

The module can be used to create DI to DO pair-connect through the Ethernet. After configuration, the ET-2268 module can poll the status of remote DI channels via the Modbus TCP protocol and write data to local DO channels.

It is equipped with a removable terminal block connector for easy and robust wiring in industrial applications and features a powerful 32-bit ARM MCU to handle efficient network trafficking.

ET-2268 module supports MQTT protocol and can act as a message publisher and subscriber. After connecting to the server MQTT Broker, the I/O status of the module can be published in the form of a topic, and can also receive messages from the same subscription topics. In communication, when the ET-2268 module is disconnected from the broker, the module has a reconnection mechanism that can automatically reconnect with the broker. In addition, there is a Keep-Alive Interval mechanism to ensure that the connection with the Broker is always maintained.

The ET-2268 supports the standard SNMP V2c specification. Through this specification, ET-2200 can transmit module information and I/O information to SNMP network management equipment or software (SNMP Network Management Software) to help administrators monitor the status of ET-2200 in real time. If the Trap function is enabled, when the module I/O status changes or reboots, it can send a message to the manager to keep track of the channel status at any time.

Applications

• Factory, Building and Home Automation Remote Maintenance.
