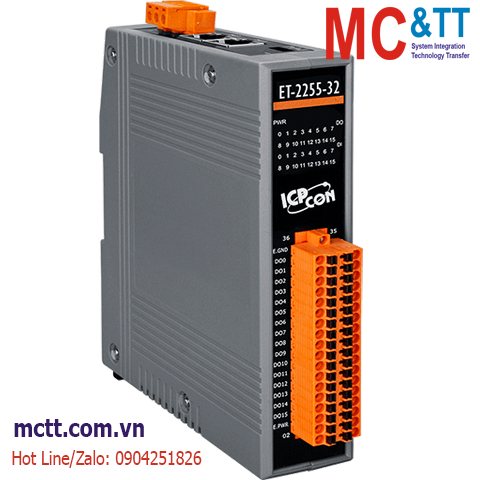

Module 2 cổng Ethernet Modbus TCP & MQTT 16 kênh DI+ 16 kênh DO ICP DAS ET-2255-32 CR

Chia sẻ:
Mã sản phẩm: ET-2255-32
Thương hiệu: ICP DAS
Tình trạng:

Ethernet I/O Module with 16-ch DI and 16-ch Sink-type DO

Liên hệ
Mô tả

Module 2 cổng Ethernet Modbus TCP & MQTT 16 kênh DI+ 16 kênh DO ICP DAS ET-2255-32 CR

Features

  • Built-in Web Server
  • Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
  • 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
  • Dual Watchdog
  • I/O Pair Connection (Push and Pull)
  • Built-in I/O
    • 16-channel DI and 16-channel Sink-type DO
  • LED Display to Indicate the I/O status

Introduction

Providing various digital I/O functions, the ET-2255-32 module is an Ethernet I/O monitoring and control module. The module can be remotely controlled through a 10/100 M Ethernet network by using Modbus TCP/UDP protocol. Modbus has become a de facto standard communications protocol in industry and is now the most commonly available means of connecting industrial electronic devices. This makes the ET-2255-32 module perfect integration with the HMI, SCADA, PLC, and other software systems.

The ET-2255-32 provides 16 wet/dry contact digital input channels and 16 sink-type digital output channels. With 2 Ethernet ports, the ET-2255-32 allows a daisy chain connection which permits flexibility in locating devices, eases installation, and lowers infrastructure costs. It features optical isolation for 3000 Vrms of transient overvoltage protection but doesn’t provide channel-to-channel isolation. Each input channel can be used as a 32-bit counter and each output channel support configurable power-on and safe values. It can safely be used in applications where hazardous voltages are present. It features 8 kV ESD protection, 4 kV EFT protection, 3 kV surge, and 3000 VDC I/O isolation also provided to enrich the noise protection ability for the industrial environment.

The module can be used to create a DI to DO pair-connect through the Ethernet. After configuration, the ET-2255-32 module can poll the status of the local DI channels and then use the Modbus/TCP protocol to continuously write to the remote DO devices.

It is equipped with a removable terminal block connector for easy and robust wiring in industrial situations and features a powerful 32-bit ARM MCU to handle efficient network trafficking.

ET-2255-32 module supports MQTT protocol and can act as a message publisher and subscriber. After connecting to the server MQTT Broker, the I/O status of the module can be published in the form of a topic, and can also receive messages from the same subscription topics. In communication, when the ET-2255-32 module is disconnected from the broker, the module has a reconnection mechanism that can automatically reconnect with the broker. In addition, there is a Keep-Alive Interval mechanism to ensure that the connection with the Broker is always maintained.

The ET-2255-32 supports the standard SNMP V2c specification. Through this specification, ET-2200 can transmit module information and I/O information to SNMP network management equipment or software (SNMP Network Management Software) to help administrators monitor the status of ET-2200 in real time. If the Trap function is enabled, when the module I/O status changes or reboots, it can send a message to the manager to keep track of the channel status at any time.

Applications

  • Factory, Building and Home Automation Remote Maintenance.

Specifications

Software
Built-in Web Server Yes
CPU Module
CPU 32-bit ARM
Watchdog Timer Module, Communication (Programmable)
Isolation
2-way Isolation Ethernet: 1500 VDC
I/O: 3000 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±8 kV Contact for Each Terminal
±16 kV Air for Random Point
Surge (IEC 61000-4-5) ±3 kV for Power Line
LED Indicators
Status Run, Ethernet, I/O
Digital Input/Counter
Channels 16
Type Dry Contact
Wet Contact
Sink/Source (NPN/PNP) Dry: Source
Wet: Sink/Source
ON Voltage Level Dry: Close to GND
Wet: +5 to +50 VDC
OFF Voltage Level Dry: Open
Wet: +1 VDC (max.)
Max. Counts 4,294,967,295 (32-bit)
Frequency 3 kHz
Input Impedance 7.5 kΩ
Overvoltage Protection +70 VDC
Low Pass Filter 1 to 6500 ms (0.08 Hz to 500 Hz)
Digital Output
Channels 16
Type Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +3.5 to +50 VDC
Load Current 600 mA/channel
Overvoltage Protection +60 VDC
Overload Protection 1.4 A (with short-circuit protection)
Short-circuit Protection Yes
Power on Value Programmable
Safe Value Programmable
Ethernet
Ports 2 x RJ-45, 10/100 Base-TX, Switch Ports
LAN bypass Yes
Security Password and IP Filter
Protocol Modbus TCP, Modbus UDP, and MQTT
Power
Reverse Polarity Protection Yes
Consumption 3.6 W (max.)
Powered from Terminal Block +10 to +48 VDC
Mechanical
Casing Plastic
Dimensions (mm) 31 x 157 x 126 (W x L x H)
Installation DIN-Rail mounting
Environment
Operating Temperature -25 to +75 °C
Storage Temperature -40 to +80 °C
Humidity 10 to 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

ET-2255-32     CR  Ethernet I/O Module with 2-port Ethernet Switch, 16-ch DI and 16-ch Sink-type DO (RoHS)
