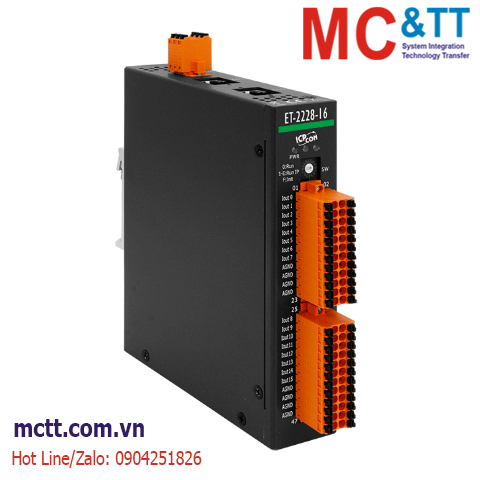

Module 2 cổng Ethernet Modbus TCP & MQTT 16 kênh AO ICP DAS ET-2228-16 CR
ET-2228-16 is a 16-channel analog output module that provides a variety of programmable output ranges, including 0 ~ 5 V, +/-5 V, 0 ~ 10 V, +/-10 V, 4 ~ 20 mA, and 0 ~ 20 mA. It offers configurable AO power-on value and safe value settings, as well as open wire detection for each 4 ~ 20 mA output channel. The module includes a built-in 2-port Ethernet switch, facilitating a Daisy-chain topology. This feature offers flexibility in device configuration, simplifies installation, and reduces infrastructure costs. Additionally, the module provides EMS (EFT/ESD/Surge) protection and 3000 VDC I/O isolation to enhance noise protection capabilities in industrial environments.
ET-2228-16 supports the MQTT protocol, serving as a publisher and subscriber of messages. When connected to an MQTT Broker Server, it can publish real-time statuses of I/O in the form of topics and receive messages from subscribed topics. If a disconnection occurs between the module and the broker during communication, its mechanism for reconnecting can automatically restore the connection. Additionally, its Keep-Alive Interval mechanism ensures a continuous connection with the broker.
ET-2228-16 supports the SNMP V2c specification, enabling it to transmit both module and I/O information to SNMP network management devices or software (SNMP Network Management Software). This allows administrators to monitor module status in real-time. Additionally, if the Trap function is enabled, the module can proactively send messages to administrators when there are changes in I/O statuses or during restarts, keeping them informed of channel statuses at all times.
Features
- Web Server for Configuration
- Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
- 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
- Supports Dual-watchdog
- I/O Pair Connection (Push and Pull)
- Built-in I/O
Applications
• Factory Automation
• Machine Automation
• Building Automation
• Remote Diagnosis & Maintenance
• Testing Equipment
Specifications
| Software |
| Built-in Web Server |
Yes |
| CPU Module |
| CPU |
32-bit ARM |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| 2-way Isolation |
Ethernet: 1500 VDC
I/O: 3000 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
±2 kV for Power Line |
| LED Indicators |
| Status |
Run, Ethernet |
| Analog Output |
| Channels |
16 |
| Type |
Voltage, Current |
| Range |
Voltage: 0 ~ +5 VDC, ±5 VDC, 0 ~ +10 VDC, ±10 VDC
Current: 0 ~ 20 mA, 4 ~ 20 mA |
| Refresh Rate |
8 ms (Total) |
| Resolution |
12-bit |
| Accuracy |
±0.1% of FSR |
| Open Wire Detection |
For 4 ~ 20 mA only |
| Voltage Output Capability |
10 V @ 10 mA |
| Current Load Resistance |
500 Ω |
| Individual Channel Configuration |
Yes |
| Power-on Value |
Programmable |
| Safe Value |
Programmable |
| Ethernet |
| Ports |
2 x RJ-45, 10/100 Base-Tx, Switch Ports |
| LAN bypass |
Yes |
| Access Control |
Password and IP Filter |
| Protocol |
Modbus TCP, Modbus UDP, MQTT, SNMP V2c |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
8.5 W (max.) |
| Powered from Terminal Block |
+10 ~ +48 VDC |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
31 x 159 x 137 (W x L x H) |
| Installation |
DIN-Rail mounting / Wall mounting (Optional ASO-0015) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ET-2228-16 CR |
Ethernet I/O Module with 2-port Ethernet Switch, 16-ch AO (RoHS) |
