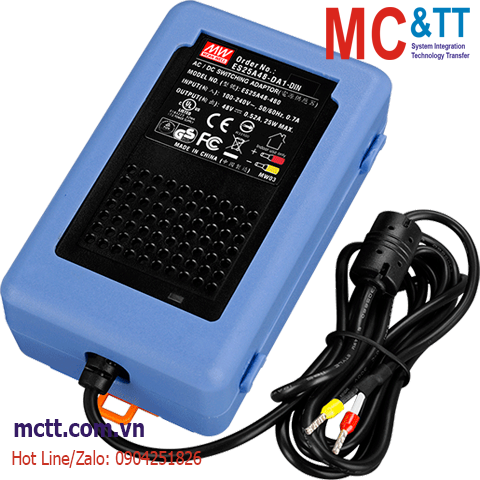

Bộ đổi nguồn 220VAC/48VDC 0.52A 25W ICP DAS ES25A48-DA1-DIN CR

Chia sẻ:
Mã sản phẩm: ES25A48-DA1-DIN
Thương hiệu: ICP DAS
Tình trạng:

Power Supply, 90~264 VAC to 48 VDC/0.52 A, 25 W, DIN-Rail Mounting

Liên hệ
Mô tả

Bộ đổi nguồn 220VAC/48VDC 0.52A 25W ICP DAS ES25A48-DA1-DIN CR

Feature

  • Universal AC input I Full range
  • Protections: Short circuit I Overload I Over voltage
  • Fully enclosed plastic case

Introduction

Application

Specifications

Safety
Standard UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336 approved
EMC
Standard Compliance to EN55022 class B, FCC PART 15 / CISPR22 class B, CNS13438 class B
Input
Voltage Range 90-264VAC
Frequency Range 47-63Hz
AC Current (Typ.) 0.7A/100VAC
Inrush Current (Typ.) 40A/230VAC
Leakage Current 0.75 mA/240 VAC
Output
Ripple & Noise (Max.) 180mVp-p
Setup, Rise Time 600ms, 50ms
Hold Up Time (Typ.) 16ms at full load
DC Voltage 48VDC
Rated Power 25W
Rated Current 0.52A
Efficiency 82% typical
Protection
Over Voltage Yes (clamp by Zener diode).
Mechanical
Casing Plastic
Dimensions (mm) (74 * 109 * 52)mm
Installation DIN-Rail Mounting
Environment
Temperature Coefficient ±0.04%/°C (0~50°C)
Operating Temperature 0 °C ~ +50°C
Storage Temperature -20 °C ~ +85°C
Humidity 20% ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

ES25A48-DA1-DIN     CR  Power Supply, 90~264 VAC to 48 VDC/0.52 A, 25 W, DIN-Rail Mounting (RoHS)
