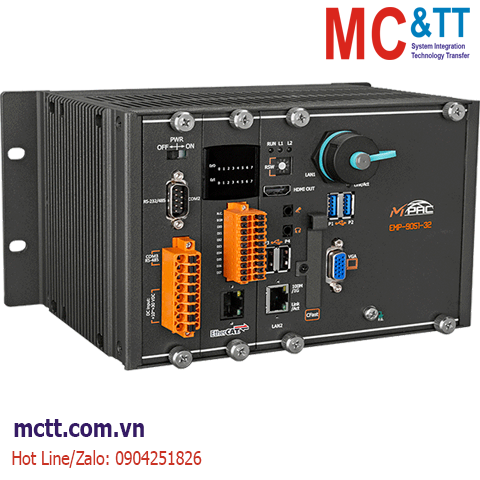

Bộ lập trình nhúng PAC EtherCAT Master Atom E3950 CPU + Windows 10 IoT ICP DAS EMP-9091-32 CR
Features
• Windows 10 IoT Enterprise (64-bit)
• VGA and HDMI Port Output
• 2 10/100/1000M Ethernet Ports
• Redundant Power Input
• Synchronized motion (E-GEAR, E-CAM)
• Virtual axes
• Multi-axis linear interpolation
Introduction
The EMP-9091-32 is Windows 10 IoT based PAC with EtherCAT Master pre-installed.Itcombines computing, I/O, and operator interface into a single unit, and provides the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an Intel Atom E3950 CPU and a variety of connectives including dual Gigabit Ethernet, VGA, USB port, RS-232 and RS-485 interface.
Applications
Specifications
| Software |
| OS |
Windows 10 IoT Enterprise (64-bit) |
| Service |
IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Framework Support |
.Net Compact Framework 3.5 ~ 4.8 |
| Multilanguage Support |
English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK |
Dll for VC, Dll for Visual Studio.Net |
| Main Unit |
| CPU |
Intel Atom E3950(1.6 ~ 2.0 GHz, 4C4T) |
| 64-bit Hardware Serial Number |
Yes |
| System Memory |
8 GB DDR4 SDRAM |
| Storage |
64 GB SSD
32 GB CF card |
| Non-Volatile Memory |
128 KB MRAM
16 KB EEPROM |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Dual Watchdog Timer |
| Display |
| Signal |
VGA, HDMI |
| Resolution |
VGA 1280 x 1024 ~ 1920 x 1080 (16 : 9), 640 x 480 ~ 1024 x 768 (4 : 3)
HDMI 2560 x 1600 @ 24bpp |
| LED Indicators |
| Status |
1 x System
2 x Programmable |
| Interpolation |
| Circular |
Any 2- or 3-axis |
| Helical |
Any 3-axis |
| Linear |
Any 2- or 32-axis |
| Digital Input |
| Channels |
8 |
| Type |
Wet Contact |
| ON Voltage Level |
+19V ~ +24V |
| OFF Voltage Level |
+11V Max. |
| Isolation |
3000VDC |
| Digital Output |
| Channels |
8 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+24V |
| Load Current |
1000 mA/ch |
| Isolation |
3000Vrms |
| I/O Expansion |
| I/O Type |
e9K, I-9K, I-97K series |
| Slots |
- |
| COM Ports |
| Ports |
1 x RS-485 (3000 VDC Isolated)
1 x RS-232/RS-485 (3000 VDC Isolated) |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
1 x 10 Position (0 ~ 9) |
| Audio |
| Cable |
Microphone-in and Earphone-out |
| Ethernet |
| Ports |
2 x RJ-45, 10/100/1000 Base-TX |
| EtherCAT |
| Ports |
1 x RJ-45 |
| No. of Axes |
Max. 32 |
| No. of Nodes |
Max.512 |
| Data Transfer Medium |
Ethernet Cable (Min. CAT 5e), Shielded |
| Power |
| Input Range |
+10 ~ 30 VDC (1 kV Isolated) |
| Redundant Power Inputs |
Yes |
| Consumption |
18.5 W |
| Mechanical |
| Dimensions (mm) |
239 x 164 x 133 (W x L x H) |
| Installation |
DIN-Rail, Wall mounting |
| Environment |
| Operating Temperature |
-25 ~ +60 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| EMP-9091-32 CR |
EtherCAT Master based 9000 series PAC with Atom E3950 CPU and Windows 10 IoT(RoHS) |
