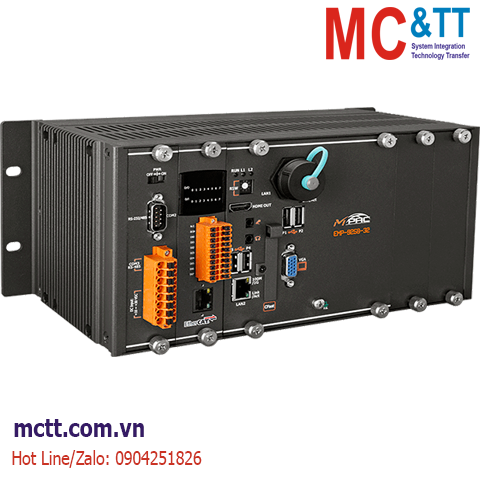

Bộ lập trình điều khiển chuyển động (Motion Controller) i5-8365UE CPU + Windows 10 IoT ICP DAS EMP-9258-32 CR

Chia sẻ:
Mã sản phẩm: EMP-9258-32
Thương hiệu: ICP DAS
Tình trạng:

SoftPLC Based EMP-9000 Motion Controller Series

Liên hệ
Mô tả

Bộ lập trình điều khiển chuyển động (Motion Controller) i5-8365UE CPU + Windows 10 IoT ICP DAS EMP-9258-32 CR

Features

• Embedded Windows IoT with SoftPLC runtime and real-time EtherCAT master
• Supports all IEC-61131-3 SoftPLC languages (FBD, LD, IL, ST, and SFC)
• EtherCAT motion control:

> PLCopen function blocks for single and multiple axes control
> Supports all standard CiA402 EtherCAT slave driver
> Control up to 32-axis with 0.5 ms cycle time

• Communication protocol:

> EtherCAT
> Modbus TCP/RTU
> OPC UA server

• Allows third party software integration via shared memory
• HMI driver for eLogger and Indusoft (AVEVA Edge)
• Programming interfaces for C/C++/C#/LabView

Introduction

EMP-9x58-xx is a SoftPLC based motion controller with a high performance processor, an integrated real-time EtherCAT master and a multi-axis motion kernel. The built-in motion engine together with the EtherCAT master are running on a dedicated processor in a real-time environment to achieve a time-deterministic control of the EtherCAT application. The controller uses EtherCAT as its main communications technology.

EMP-9x58-xx combines a PLC-based motion logic system with a Windows IoT operation system, allowing PLC, motion control and Windows application to run simultaneously without affecting each other. This enables the machine-builders to integrate in house developed or third party Windows software, for instance, HMIs, data gathering and processing applications. Programming interfaces and shared memory communication are provided to allow Windows application to directly and rapidly access the PLC data.

The SoftPLC supports all five programming language defined by the IEC61131-3 standard, provides extensive programming libraries including motion control and fieldbus libraries. The motion control function blocks are designed according to PLCopen (part 1, 2, 4) and CiA402, are easy to use and greatly reduces learning and development time. The controller can handle up to 512 EtherCAT slaves and up to 32 EtherCAT servo/stepper drives. It supports the implementation of both simple and complex motion control, such as single- and multi-axis movements and interpolation.

A OPC UA server is part of the PLC runtime and is a secure, open, reliable mechanism for transferring information. OPC UA is used for horizontal communication between machines and vertical communication between the machine and higher-level IT system (SCADA, cloud). All standard OPC UA clients can be directly connected to the motion controller without customization thereby reducing integration or application software development costs.

Equipped with a variety communication interfaces (RS-232/485, Ethernet ports, USB, etc.) the controller makes it easy to integrate peripheral devices such as sensors, machine vision systems, and central computers. In addition expandable communication and IO module are available for ease of customization.

EMP-9x58-xx uses EtherCAT as its main real-time, high speed communication protocol. Beside EtherCAT the Modbus fieldbus (TCP, RTU, ASCII) is an integral part of the SoftPLC which allows the controller to be connected to a Modbus network and act as a Modbus/EtherCAT gateway.

The compact design with robust metal housing saves space in machines and control panels and reduces EMF interference.

Embedded is a software package for configuration, programming and monitoring the multi-axis controller. In addition extensive programming example are provided.

Applications

Specifications

Software
OS Windows 10 IoT Enterprise (64-bit)
Service IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script)
Framework Support .Net Compact Framework 3.5 ~ 4.8
Multilanguage Support English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese
SDK Dll for VC, Dll for Visual Studio.Net
Main Unit
CPU Intel® Core™ i5-8365UE Processor (1.6 ~ 4.1 GHz, 4C8T)
64-bit Hardware Serial Number Yes
System Memory 16 GB DDR4 SDRAM
Storage 64 GB SSD
32 GB CF card
Non-Volatile Memory 128 KB MRAM
16 KB EEPROM
Real Time Clock Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer Dual Watchdog Timer
Display
Signal VGA, HDMI
Resolution VGA 1280 x 1024 ~ 1920 x 1080 (16 : 9), 640 x 480 ~ 1024 x 768 (4 : 3)
HDMI 2560 x 1600 @ 24bpp
LED Indicators
Status 1 x System
3 x Programmable
Interpolation
Circular Any 2- or 3-axis
Linear Any 2- or 32-axis
Digital Input
Channels 8
Type Wet Contact
ON Voltage Level +19V ~ +24V
OFF Voltage Level +11V Max.
Isolation 3000VDC
Digital Output
Channels 8
Type Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +24V
Load Current 1000 mA/ch
Isolation 3000Vrms
I/O Expansion
I/O Type e9K, I-9K, I-97K series
Slots 2
COM Ports
Ports 1 x RS-485 (3000 VDC Isolated)
1 x RS-232/RS-485 (3000 VDC Isolated)
HMI
Buzzer Yes
Rotary Switch 1 x 10 Position (0 ~ 9)
Audio
Cable Microphone-in and Earphone-out
Ethernet
Ports 2 x RJ-45, 10/100/1000 Base-TX
USB
Ports 4 x USB 2.0
EtherCAT
Ports 1 x RJ-45
No. of Axes Max. 32
No. of Nodes Max. 512
Data Transfer Medium Ethernet Cable (Min. CAT 5e), Shielded
Power
Input Range +10 ~ 30 VDC (1 kV Isolated)
Redundant Power Inputs Yes
Consumption 18.5 W
Mechanical
Dimensions (mm) 300 x 164 x 133 (W x L x H)
Installation DIN-Rail, Wall mounting
Environment
Operating Temperature -25 ~ +60 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90 % RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

EMP-9258-32     CR  32 axes Win-GRAF Motion Controller with i5-8365UE CPU and two slots (RoHS)
