Mô tả

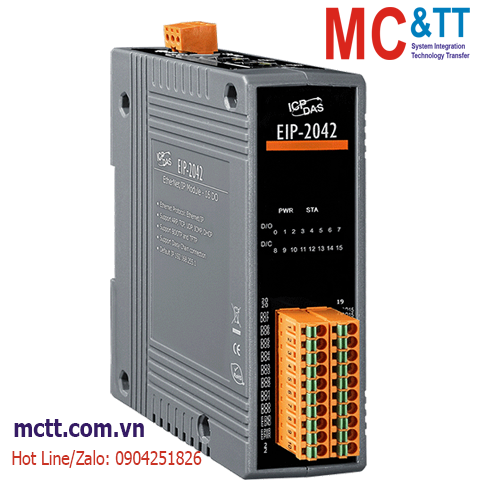

Module EtherNet/IP 16 kênh ra số DO ICP DAS EIP-2042 CR

Features

  • Transfer protocol: EtherNet/IP
  • Powerful 32-bit MCU handles efficient network traffic
  • 10/100 Base-TX Ethernet, RJ-45 x 2
    (Auto-negotiating, auto MDI/MDIX, LED Indicators)
  • Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
  • Easy firmware update via Ethernet
  • Removable terminal block connector
  • Built-in I/O
    • DO: 16 Channels
  • Power-On-Value
  • Safe-Value

Introduction

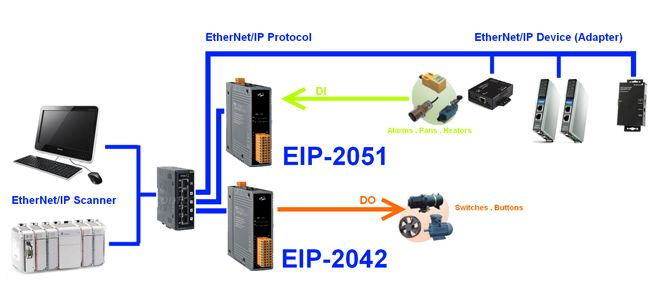

The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference. The EIP-2042 is a remote digital output module with 16 outputs. It is designed as an EtherNet/IP adapter. Users can obtain the output status as well as the connection status of the EIP-2042 by the LEDs indication. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.

Applications

  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote diagnosis
  • Testing Equipment

Specifications

Digital Output
Channels 16
Type Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +3.5 ~ +50 V
Load Current Non-RevB : 700 mA per channel ; RevB : 650 mA per channel
Isolation 3000 VDC
Ethernet
Ports 10/100 Base-TX, 8-pin RJ-45 x 2
Support daisy chain connection.
Protocol Ethernet/IP (Adapter)
Power
Consumption Non-RevB : 1.6W ; RevB : 3.2W Max
Mechanical
Dimensions (mm) 110 x 90 x 33 (H x W x D)
Installation DIN-Rail
Environment
Operating Temperature -25℃ ~ +75℃
Storage Temperature -30℃ ~ +80℃

Download

Datasheet

Documents

Ordering Information

EIP-2042     CR  EtherNet/IP Module (Isolated 16-ch DO) (RoHS)
