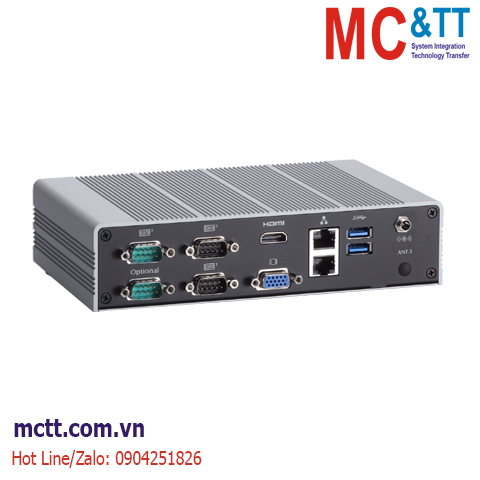

Máy tính công nghiệp không quạt Axiomtek eBOX625-853-FL-DC-N3160 với Celeron N3160, VGA, HDMI, 4 COM, 2 GbE LAN, 4 USB, and 2 PCI Mini Card.
The eBOX625-853-FL is powered by the latest Intel® Celeron® processor quad-core N3160 (formally codename: Braswell) with one DDR3L-1333/1600 SO-DIMM socket with up to 8 GB memory. The reliable Intel® Celeron® N3160-based embedded box computer supports Intel® Virtualization Technology (Intel® VT-x) which maximizes flexibility and enhances security and efficiency. The eBOX625-853-FL is ideal for IIoT (Industrial Internet of Things), retail equipment, Multi-Media Kiosk, industrial gateway, automation, and many more.
Tính năng
- Intel® Celeron® Processor N3160 2.24 GHz (Braswell)
- HDMI and VGA with dual-view supported
- Supports 4 COM and 4 USB
- 2 GbE LAN support WoL, Teaming and PXE
- 2 PCI Express Mini Card slots for WLAN/WWAN/mSATA
- -20°C to +60°C operating temperature range
- Intel® Virtualization Technology (Intel® VT-x)
Thông số kỹ thuật
| CPU |
- Intel® Celeron® processor N3160 2.24 GHz (2M Cache, up to 2.24 GHz)
|
| Chipset |
|
| System Memory |
- 1 x 204-pin DDR3L-1333/1600 SO-DIMM, up to 8GB
|
| BIOS |
|
| COM |
- 1 x RS-232/422/485
- 3 x RS-232
|
| USB |
|
| Ethernet/PoE |
- 2 x 10/100/1000 Mbps Ethernet (Intel® i211-AT)
|
| Display |
- 1 x HDMI (4K supported)
- 1 x VGA
|
| Digital I/O |
|
| Audio |
- 1 x Audio (Mic-in/Line-out)
|
| Storage |
- 1 x 2.5” HDD drive bay (max. up 15 mm height)
- 1 x mSATA (enabled in BIOS setting)
|
| Expansion |
- 2 x Full-size PCI Express Mini Card slot (PCI Express + USB signal)
- 1 x SIM slot
|
| Others |
- 3 x Antenna opening
- 1 x Screw type VDC power input connector
|
| Power |
- Input: AC 90-264V, AC 36 W adapter with lock
- Output: DC 12V@3A
|
| Watchdog Timer |
- 255 levels, 1 to 255 sec.
|
| Construction |
- Aluminum extrusion and heavy-duty steel, IP40
|
| Operating Temperature |
- -20°C to +60°C (-4°F to +140°F) (with W.T. SSD/DRAM)
|
| Relative Humidity |
- 10% to 95%, non-condensing
|
| Vibration |
- 3 Grms with SSD (5 to 500Hz, X, Y, Z directions)
|
| Shock |
|
Dimensions
(W x D x H) |
- 200 x 120 x 46mm (7.87” x 4.72” x 1.81”)
|
| Weight (net/gross) |
- 1.2 kg (2.65 lb)/1.9 kg (4.19 lb)
|
| Certifications |
|
| EOS Support |
- WES7, WE8S, Win10 IoT, Linux
|
| Software Support |
|
| Mounting |
- Wall mount
- DIN-rail
- VESA mount
|
Tài liệu
Datasheet
Thông tin đặt hàng
eBOX625-853-FL-DC-N3160
Fanless embedded system with Intel® Celeron® N3160, VGA, HDMI, 4 COM, 2 GbE LAN, 4 USB, and 2 PCI Express Mini Card slots
