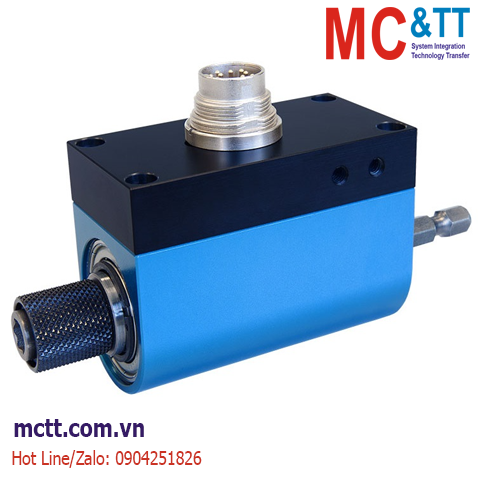

Cảm biến đo Momen xoắn trục quay với vòng trượt 1 - 20 Nm Lorenz DR-2335

Chia sẻ:
Mã sản phẩm: DR-2335
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Torque transducer DR-2335, rotating with slip ring, for assembly technique applications produced and distributed by Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo Momen xoắn trục quay với vòng trượt 1 - 20 Nm Lorenz DR-2335

DR-2335, Slipring Rotary Torque Sensor
The DR-2335 slipring torque sensor is a reliable and durable unit. Its very short axial length and high torsional stiffness allow for simple handling and simple assembly.

Features:

  • Slipring Rotary Torque Sensor
  • Hexagon Socket & Shaft
  • Very Short Axial Length
  • Integrated Speed/Angle Measurement
  • Speeds up to 2000 RPM
  • Connection: 12-pin Series 581 Connector with Speed
  • Special Versions on Request

DR-2335 - Specifications

Type Rotary
Full Scale 1 Nm
  2 Nm
  5 Nm
  10 Nm
  20 Nm
Max Speed 2000 RPM
Output 0.5 mV/V
  1 mV/V
  Speed/Angle (TTL)
Precision ±0.10 % FS
Excitation 2 V - 12 V DC
Drive Side 1/4in Hexagon Socket
Test Side 1/4in Hexagon Shaft
IP Rating IP50
Min Temperature -10 °C
Max Temperature 60 °C

Download

Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 12-pin female cable connector and free soldered ends
Connection cable, 3 m, with 12-pin female angle cable connector and free soldered ends

PDF Datasheet: 080881a_DR-2335_en.pdf
