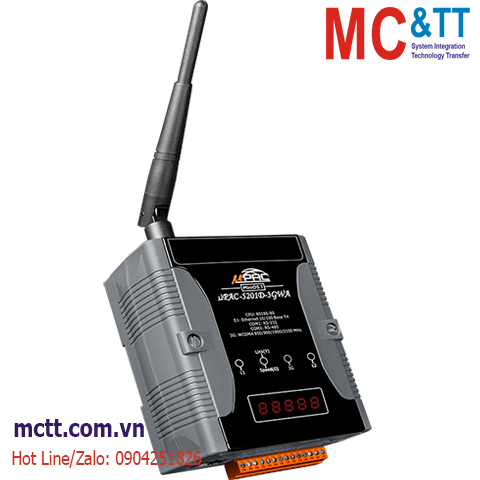

Bộ lập trình nhúng MiniOS7 PAC với CPU 80186-80 + WCDMA (3G) ICP DAS uPAC-5201D-3GWA CR
Hàng đã dừng sản xuất
Features
- Built-in High Performance MiniOS7 from ICP DAS
- Easy-to-use Software Development Tool Kits (Using C language)
- Various Storage Media
- 512 KB Flash
- 16 KB EEPROM
- microSD (More Details)
- Various Communication Interfaces
- 10/100 Base-TX Ethernet
- RS-232/RS-485
- 3G Wireless Data Communication
- 64-bit Hardware Serial Number
- I/O Expansion Bus Interface
- 5-Digital 7-SEG LED Display
- Programmable LED Indicator
- Redundant Power Inputs
- Build-in Watchdog Timer
Introduction
The uPAC-5201D-3GWA is a programmable automation controller with RS-232/485 and Ethernet communication interfaces. The uPAC-5201D-3GWA also includes a 3G modem for wireless data communication. ICP DAS provides easy-to-use software development tool kits (MiniOS7 framework, Modbus libraries). Users can use them to easily integrate serial devices to have Ethernet/Internet communication ability and through the standard Modbus protocol to communicate with SCADA software (Indusoft, ISaGARF, DasyLab, Trace Mode, Citect, iFix, etc.).
For hardware expansion, the uPAC-5201D-3GWA also supports an I/O expansion bus. A cost-effective I/O expansion board with A/D, D/A, D/I, D/O and serial ports is available. Nearly all kinds of I/O functions can be implemented by this bus. There are more than 10 boards available for uPAC-5000 series, you can choose one of them to expand hardware features.
https://mctt.vn/upac-5000-icp-das
Specifications
| Software |
| OS |
MiniOS7 |
| Development |
C Language |
| CPU Module |
| CPU |
80186, 80 MHz |
| 64-bit Hardware Serial Number |
Yes |
| EEPROM |
16 KB |
| Flash |
512 KB |
| NVRAM |
31 Bytes |
| SRAM |
512 KB |
| Storage Expansion |
Yes, support up 32 GB microSD card |
| Real Time Clock |
Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer |
Yes |
| Display |
| Type |
5 x Digit 7 Segment LED Display |
| LED Indicators |
| Status |
2 x Programmable |
| 3G System |
| Data Transmission Rate |
UMTS / HSDPA / HSUPA
Upload: Max. 5.76 Mbps; Download: Max. 7.2 Mbps |
| Frequency Band |
UMTS : 2100/1900/850 MHz |
| I/O Expansion |
| I/O Type |
XW-board |
| COM Ports |
| Ports |
1 x RS-232, 1 x RS-485 |
| Baud Rate |
115200 bps Max. |
| Ethernet |
| Ports |
1 x RJ-45, 10/100 Base-TX |
| Power |
| Input Range |
+12 ~ 48 VDC |
| Redundant Power Inputs |
Yes |
| Consumption |
2.5 W |
| Mechanical |
| Dimensions (mm) |
91 x 123 x 52 (W x H x D) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| uPAC-5201D-3GWA CR |
3G Palm-sized PAC with 80186-80 CPU, MiniOS7 and 7-Segment LED Display (RoHS) |
