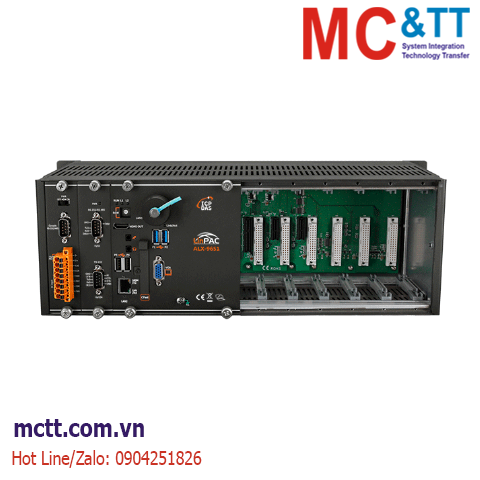

Bộ lập trình nhúng Linux PAC với CPU i5-8365UE + 6 khe cắm module I/O ICP DAS ALX-9651 CR
ALX-9000, equipped with the Linux operating system, integrates computing, I/O, and the user interface into a single unit, providing the perfect solution for controllers by combining HMI, data acquisition, and control applications. It is powered by an i5-8365UE CPU, off ers 0/2/6 expansion slots, and supports multiple communication interfaces, including Ethernet, VGA, HDMI, USB, RS-232, and RS-485.
The controller's I/O slots support e-9K, I-9K, and I-97K series I/O modules. For remote I/O expansion, Ethernet I/O modules and RS-485 I/O modules can be used. In addition, user applications can be stored on external storage devices such as CFast cards or USB mass storage devices.
The controller is designed with I-7000/I-9K/I-97K/e-9K series I/O modules. The LinPAC SDK provides fast and easy development tools to enhance the convenience of LinPAC I/O applications. Users can develop LinPAC applications with the GNU C programming language. At the same time, the built-in servers and functions further strengthen LinPAC in embedded industrial control applications, enabling users to smoothly complete their design projects through the operation of LinPAC.
Features
• Ubuntu 24.04 with Linux Kernel 6.9
• Intel®Core ™ i5-8365UE Processor (1.6 ~ 4.1 GHz, 4C8T)
• 16 GB DDR4 SDRAM
• 128 GB SSD
• Hard Real-Time Capability (RTC)
• VGA / HDMI Display Output
• Built-In Real-time clock
• 2 10/100/1000M Ethernet Ports
• Redundant Power Input
Application
Specifications
| Software |
| OS |
Ubuntu 24.04 with Linux kernel 6.9 |
| Service |
SFTP server, Web server, SSH |
| SDK |
Standard LinPAC SDK for Linux by GNU C language |
| Main Unit |
| CPU |
Intel ® Core ™ Whiskey Lake U i5-8365UE Processor (1.6 ~ 4.1 GHz, 4C8T) |
| 64-bit Hardware Serial Number |
Yes, for Software Copy Protection |
| System Memory |
16 GB DDR4 (SODIMM slots with a 16 GB DDR4 x 1) |
| Storage |
1 x 128 GB SSD (SATAIII)
1 x CFast card slot |
| Non-Volatile Memory |
128 KB MRAM
16 KB EEPROM |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Dual Watchdog Timer |
| Display |
| Signal |
1xVGA, 1xHDMI |
| Resolution |
VGA 1920 x 1200 @ 60Hz
HDMI 4096 x 2160 @ 30P |
| LED Indicators |
| Status |
1 x System
2 x Power
2 x Programmable |
| I/O Expansion |
| I/O Type |
I-9K, I-97K, e-9K series |
| Slots |
6 x serial/parallel bus
2 x e-Bus (x1)
1 x e-Bus (x4) |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
1 x 10 Position (0 ~ 9) |
| Power Switch |
Yes |
| Audio |
| Jack |
Microphone-in and Earphone-out |
| Ethernet |
| Ports |
1 x RJ-45, 10/100/1000 Base-TX (Intel® I219-LM)
1 x RJ-45, 10/100/1000 Base-TX (Intel® I210) |
| COM Ports |
| Ports |
1 x RS-232 (3000 VDC Isolated)
1 x RS-485 (3000 VDC Isolated)
2 x RS-232/RS-485 (3000 VDC Isolated) |
| USB |
| Ports |
2 x USB 2.0
2 x USB 3.0 |
| Power |
| Input Range |
+19 ~ 30 VDC (2 kV Isolated) |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption |
30.5 W (Typical)
71 W (CPU Full Load) |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
233 x 164 x 133 (W x L x H) |
| Installation |
DIN-Rail, Wall mounting |
| Environment |
| Operating Temperature |
-25 ~ +60 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ALX-9651 CR |
6-slot Linux Based Metal PAC with an i5-8365UE CPU (RoHS) |
