Bộ lập trình nhúng AVEVA Edge PAC 300 tag CPU Cortex-A8 + WinCE 7.0 +8 khe cắm module I/O ICP DAS AE-9821-CE7 CR

Chia sẻ:
Mã sản phẩm: AE-9821-CE7
Thương hiệu: ICP DAS
Tình trạng:

AVEVA Edge (300 tags) ready, 8-slot WinPAC

Liên hệ
Mô tả

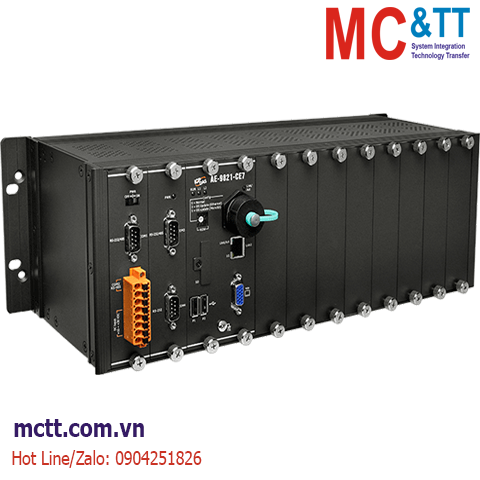

Bộ lập trình nhúng AVEVA Edge PAC 300 tag CPU Cortex-A8 + WinCE 7.0 +8 khe cắm module I/O ICP DAS AE-9821-CE7 CR

Features

• AVEVA Edge runtime license ready
• Cortex-A8, 1 GHz CPU
• Windows CE 7.0
• Hard Real-Time Capability
• Rich software support
• Various Memory and Storage
      ‣ 512 MB SDRAM and 256 MB Flash
      ‣ 16 KB FRAM and 128 KB MRAM for data retention
      ‣ 1 x SD socket with one SD card
• Various Communication Interfaces
      ‣ 2 x 10/100/1000BASE-T Ethernet Ports
      ‣ 4 x Serial Ports (RS-232/485)
      ‣ 2 x USB 2.0 (host)
• Built-In VGA Port
• Built-In Real-time clock
• 64-bit Hardware Serial Number for Software Protection
• 8 x I/O Expansion Slots
• Built-In dual Watchdog Timer
• Redundant Power Input

Introduction

The AE-9821-CE7 is CE7 based WinPAC that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for data acquisition and control in an individual PAC. It is equipped with an ARM Cortex-A8 (32-bit and 1 GHz) CPU and a variety of input/output ports (USB, Ethernet, RS-232/485). Local 2 I/O slot is available to use ICP DAS I-9K and I-97K series I/O modules and remote I/O expansion is available to use Ethernet I/O modules and RS-485 I/O modules.

This WinPAC also features with the powerful AVEVA Edge.
AVEVA Edge is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop Human Machine Interface (HMI) and Supervisory Control and Data Acquisition (SCADA) systems. Compared to traditional IPC + PLC solutions, WinPAC reduces overall system cost, space and gives you all the best features of IPC and PLC.

Application

Specifications

Software
OS Windows CE 7.0
Service FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server
Framework Support .Net Compact Framework 3.5
Multilanguage Support English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
SDK Dll for VC, Dll for Visual Studio.Net 2008
Main Unit
CPU Cortex-A8, 1.0 GHz
64-bit Hardware Serial Number Yes
System Memory 512 MB DDR3 SDRAM
Storage 256 MB Flash, 4 GB SD card (up to 32 GB)
Non-Volatile Memory 128 KB MRAM, 16 KB EEPROM
Real Time Clock Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer Dual Watchdog Timer
Display
Signal VGA
Resolution 800 x 600, 1024 x 768
LED Indicators
Status 1 x System, 2 x Power, 2 x Programmable
I/O Expansion
I/O Type I-9K, I-97K series
Slots 8
COM Ports
Ports 1 x RS-232 (3000 VDC Isolated), 1 x RS-485 (3000 VDC Isolated), 2 x RS-232/RS-485 (3000 VDC Isolated)
HMI
Buzzer Yes
Rotary Switch 1 x 10 Position (0 ~ 9)
Ethernet
Ports 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB
Ports 2 x USB 2.0
Power
Capacity 1.5 A, 5 V supply to CPU and backplane; 6.5 A, 5 V supply to I/O expansion slots, total 40 W
Input Range +10 ~ 30 VDC (1 kV Isolated )
Redundant Power Inputs Yes, with one power relay (1 A @ 24 VDC) for alarm
Consumption 10.8 W (0.45 A @ 24 VDC)
Mechanical
Casing Metal
Dimensions (mm) 239 x 133 x 164 (W x L x H)
Installation DIN-Rail, Wall mounting
Ingress Protection Rating IP30 (Aluminum)
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90 % RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

AE-9821-CE7     CR  AVEVA Edge (300 tags) ready, 8-slot WinPAC (WinCE 7.0) (RoHS)
