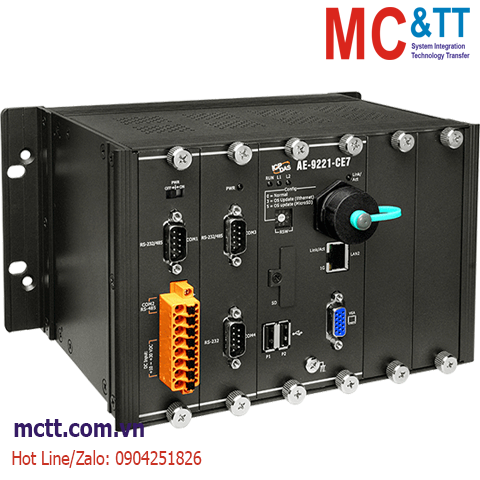

Bộ lập trình nhúng AVEVA Edge PAC 1500 tag CPU Cortex-A8 + WinCE 7.0 +2 khe cắm module I/O ICP DAS AE-9221-CE7-1500 CR
Features
• AVEVA Edge runtime license ready
• Cortex-A8, 1 GHz CPU
• Windows CE 7.0
• Hard Real-Time Capability
• Rich software support
• Various Memory and Storage
‣ 512 MB SDRAM and 256 MB Flash
‣ 16 KB FRAM and 128 KB MRAM for data retention
‣ 1 x SD socket with one SD card
• Various Communication Interfaces
‣ 2 x 10/100/1000BASE-T Ethernet Ports
‣ 4 x Serial Ports (RS-232/485)
‣ 2 x USB 2.0 (host)
• Built-In VGA Port
• Built-In Real-time clock
• 64-bit Hardware Serial Number for Software Protection
• 2 x I/O Expansion Slots
• Built-In dual Watchdog Timer
• Redundant Power Input
Introduction
The AE-9221-CE7-1500 is CE7 based WinPAC that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for data acquisition and control in an individual PAC. It is equipped with an ARM Cortex-A8 (32-bit and 1 GHz) CPU and a variety of input/output ports (USB, Ethernet, RS-232/485). Local 2 I/O slot is available to use ICP DAS I-9K and I-97K series I/O modules and remote I/O expansion is available to use Ethernet I/O modules and RS-485 I/O modules.
This WinPAC also features with the powerful AVEVA Edge.
AVEVA Edge is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop Human Machine Interface (HMI) and Supervisory Control and Data Acquisition (SCADA) systems. Compared to traditional IPC + PLC solutions, WinPAC reduces overall system cost, space and gives you all the best features of IPC and PLC.
Application
Specifications
| Software |
| OS |
Windows CE 7.0 |
| Service |
FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server |
| Framework Support |
.Net Compact Framework 3.5 |
| Multilanguage Support |
English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK |
Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit |
| CPU |
Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number |
Yes |
| System Memory |
512 MB DDR3 SDRAM |
| Storage |
256 MB Flash, 4 GB SD card (up to 32 GB) |
| Non-Volatile Memory |
128 KB MRAM, 16 KB EEPROM |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Dual Watchdog Timer |
| Display |
| Signal |
VGA |
| Resolution |
800 x 600, 1024 x 768 |
| LED Indicators |
| Status |
1 x System, 2 x Power, 2 x Programmable |
| I/O Expansion |
| I/O Type |
I-9K, I-97K series |
| Slots |
2 |
| COM Ports |
| Ports |
1 x RS-232 (3000 VDC Isolated), 1 x RS-485 (3000 VDC Isolated), 2 x RS-232/RS-485 (3000 VDC Isolated) |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
1 x 10 Position (0 ~ 9) |
| Ethernet |
| Ports |
2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| Power |
| Capacity |
1.5 A, 5 V supply to CPU and backplane; 6.5 A, 5 V supply to I/O expansion slots, total 40 W |
| Input Range |
+10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption |
10.8 W (0.45 A @ 24 VDC) |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
239 x 133 x 164 (W x L x H) |
| Installation |
DIN-Rail, Wall mounting |
| Ingress Protection Rating |
IP30 (Aluminum) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| AE-9221-CE7-1500 CR |
AVEVA Edge (1500 tags) ready, 2-slot WinPAC (WinCE 7.0) (RoHS) |
