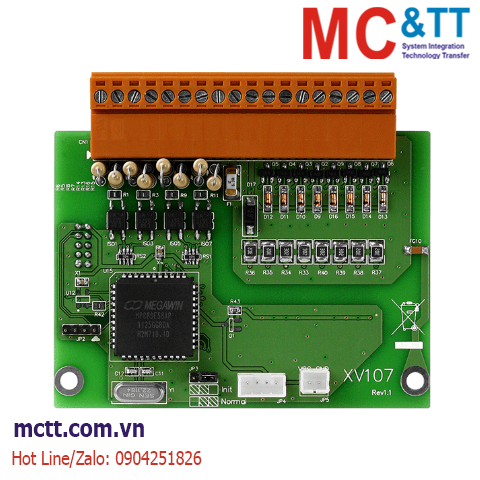

Card mở rộng 8 kênh DI + 8 kênh DO ICP DAS XV107 CR

Chia sẻ:
Mã sản phẩm: XV107
Thương hiệu: ICP DAS
Tình trạng: Còn hàng

8-ch Isolated Dl and 8-ch Isolated DO Expansion Board

Liên hệ
Mô tả

Card mở rộng 8 kênh DI + 8 kênh DO ICP DAS XV107 CR

The XV107 provides 8 channels for digital input and 8 channels for digital output, each of which features photocouple isolation. The XV107 supports sink-type output with short circuit protection, while the input is source-type. All input channels can be used an 32-bit counters. There are options for configuring power-on digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided. The XV107A has the same specifications as the XV107, except that the input and output types are reversed.

Tính năng

  • Sink-type Digital Output
  • Source-type Digital Input
  • All Input Channels Can Be Used As 32-bit Counters
  • Configurable Power-on Value Settings
  • 70 VDC Overvoltage Protection for Digital Input
  • Overload Protection for Digital Output
  • Short-circuit Protection for Digital Output

Thông số kỹ thuật

Isolation
Intra-module Isolation 3750 VDC
EMS Protection
ESD (IEC 61000-4-2) ±4 kV Contact For Each Terminal
±8 kV Air For Random Terminal
Digital Input/Counter
Channels 8
Type Wet Contact
Sink/Source (NPN/PNP) Source
ON Voltage Level +3.5 ~ 50 VDC
OFF Voltage Level +1 VDC Max.
Max. Counts 32-bit (0 ~ 4, 294, 967, 285)
Frequency 50 Hz
Min. Pulse Width 10 ms
Input Impedance 10 KΩ, 0.5 W
Overvoltage Protection 70 VDC
Digital Output
Channels 8
Sink/Source (NPN/PNP) Sink
Load Voltage 3.5 ~ 50 VDC
Load Current 700 mA/channel
Overvoltage Protection 60 VDC
Overload Protection Yes
Short-circuit Protection Yes
Power on Value Yes, Programmable
COM Ports
Ports 1 x RS-232
Baud Rate 115200 bps
Data Format N, 8, 1
Protocol Modbus/RTU
Power
Consumption 0.15 W Max.
Powered from Terminal Block 5 VDC
Mechanical
Dimensions (mm) 59 mm x 82 mm x 13 mm (W x L x H)
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Thông tin đặt hàng

XV107  CR  8-ch Isolated DI (Wet, Source) and 8-ch Isolated DO (Sink, NPN, 3.5 ~ 50 VDC) Expansion Board (RoHS)
