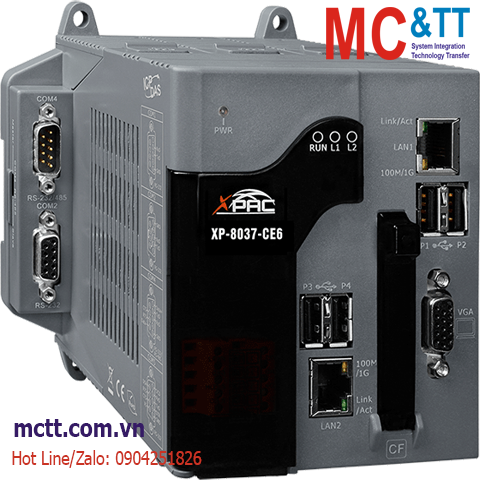

Bộ lập trình nhúng ISaGRAF PAC CPU x86 + WinCE 6.0 ICP DAS XP-8037-CE6 CR

Chia sẻ:
Mã sản phẩm: XP-8037-CE6
Thương hiệu: ICP DAS
Tình trạng:

0-slot ISaGRAF Based PAC with x86 CPU and WinCE 6.0

Liên hệ
Mô tả

Bộ lập trình nhúng ISaGRAF PAC CPU x86 + WinCE 6.0 ICP DAS XP-8037-CE6 CR

Features

• x86 CPU, 1.0 GHz, dual-core
• Windows CE 6.0
• Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3)
• Hard Real-Time Capability
• VGA Port Output
• Modbus RTU/TCP (Master, Slave)
• Support eLogger HMI
• Support Motion Control: Using I-8094F/8094/8092F
• Redundant Power Inputs

Introduction

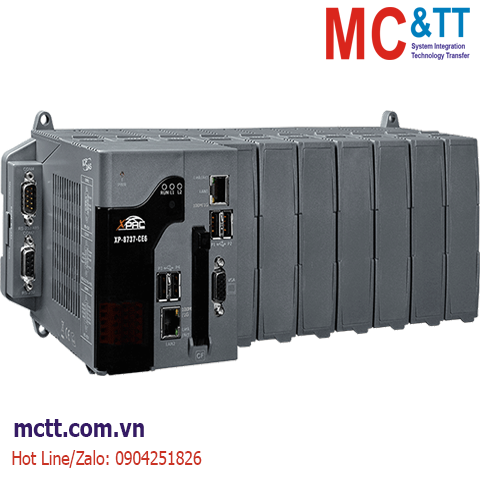

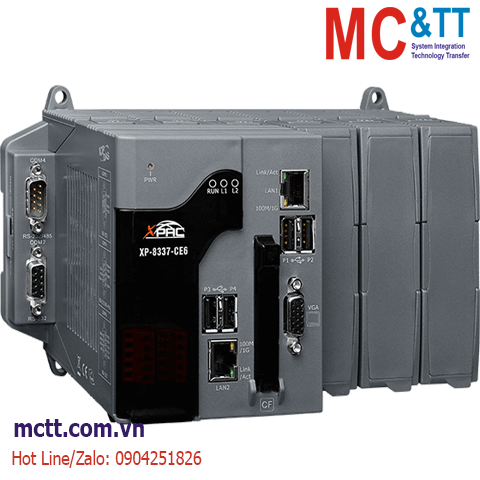

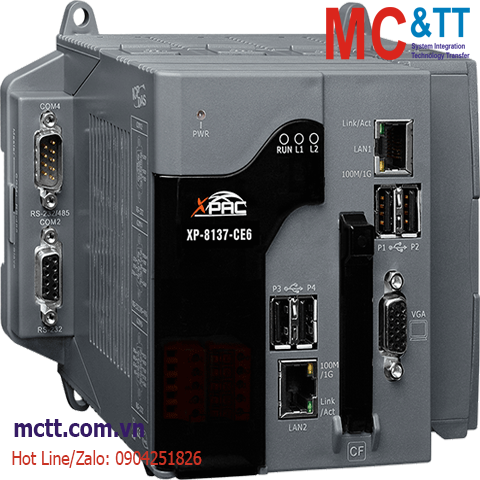

The XP-8x37-CE6 Series (XP-8037-CE6/XP-8137-CE6/XP-8337-CE6/XP-8737-CE6) is the new generation ISaGRAF PAC from ICP DAS. Each is equipped with an x86 CPU (1 GHz) dual-core running a Windows Embedded CE 6.0 operating system, a variety of input/output ports (VGA, USB, Ethernet, RS-232/485), and a range of I/O slots (0/1/3/7) that can be used to integrate high-performance parallel I/O modules (high profile I-8K Series) or serial I/O modules (high profile I-87K series).

The benefits of running Windows CE 6.0 on an XPAC device include hard real-time capabilities, small core size, fast boot speed, interrupt handling at a deeper level, and achievable deterministic control. XPAC devices are also capable of running ISaGRAF and PC-based control software, such as Visual Basic .NET, Visual C#, etc., providing all of the best features of both traditional PLCs and Windows capable PCs.

Notice:
ISaGRAF can not run on 64-bit Windows 7/8 PCs. Win-GRAF would be proper choice.

Major advantage compared with the WP-8xx7 and VP-2xW7 :
    ‧ The USB-mouse operations and Ethernet communication of the XP-8x37-CE6 are more effective
       (less CPU loading) than the WP-8xx7 and VP-2xW7.
    ‧ The memory size (Flash and SDRAM) of the XP-8x37-CE6 is larger than the WP-8xx7 and VP-2xW7.

   The features of the ISaGRAF workbench Ver. 3.x include:
    ‧ IEC 61131-3 Standard Open PLC Programming Languages (LD, FBD, SFC, ST, IL) and Flow Chart (FC).
    ‧ Auto-scan I/O
    ‧ Online Debugging/Control/Monitoring, Offline Simulation
    ‧ Simple Graphic HMI
    ‧ Support eLogger HMI

The XPAC Series XP-8x37-CE6 supports eLogger HMI:

Application

Specifications

Software
OS Windows CE 6.0
Protocol • NET ID
• Redundancy Solution
• eLogger HMI
• Modbus TCP/IP Master
• Modbus TCP/IP Slave
• Modbus RTU/ASCII Master
• Modbus RTU Slave
• DCON Protocol
• User-defined Protocol
• I/O Type: DCON, Modbus RTU, and Modbus TCP/IP remote I/O
• FRnet I/O
• Web HMI
• Send Email
• Ebus
• SMS
• UDP Server & UDP Client
• TCP Client
• GPRS/SMS
• SQL Client
• CAN/CANopen
• CANopen Master
• HART Solutions
• FTP Client
Development Embedded ISaGRAF SoftLogic (IEC 61131-3)
Service FTP Server, ASP (Java Script, VB Script), SQL Compact Edition 3.5
Framework Support .Net Compact Framework 3.5
Multilanguage Support English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese
SDK Dll for eVC, Dll for Visual Studio.Net 2005/2008
Main Unit
CPU x86 CPU, 1.0 GHz, dual-core
64-bit Hardware Serial Number Yes
System Memory 2 GB DDR3 SDRAM
Storage 32 GB Flash, 8 GB CF card (up to 32 GB)
Non-Volatile Memory 16 KB EEPROM, 512 KB MRAM
Real Time Clock Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer Dual Watchdog Timer
Display
Signal VGA
Resolution 640 × 480, 800 × 480, 800 × 600, 1024 × 768
LED Indicators
Status 1 x System, 1 x Power, 2 x Programmable
COM Ports
Ports 3 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485
HMI
Buzzer Yes
Rotary Switch Yes, (0 ~ 9)
Ethernet
Ports 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB
Ports 4 x USB 2.0
Power
Input Range +10 ~ 30 VDC (1 kV Isolated )
Redundant Power Inputs Yes
Consumption 12.0 W
Mechanical
Casing Plastic
Dimensions (mm) 137 x 132 x 125 (W x L x H)
Installation DIN-Rail, Wall mounting
Environment
Operating Temperature -25 ~ +75°C
Storage Temperature -30 ~ +80°C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

XP-8037-CE6     CR  0-slot ISaGRAF Based PAC with x86 CPU and WinCE 6.0 (RoHS)
