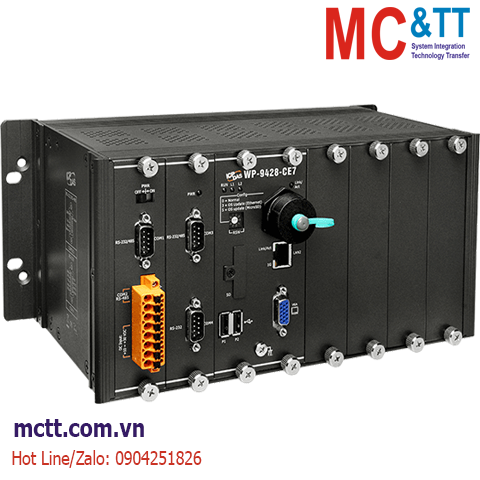

Bộ lập trình nhúng Win-GRAF PAC CPU Cortex-A8 + WinCE 7.0 + 4 khe cắm module I/O ICP DAS WP-9428-CE7 CR
Features
• Cortex-A8, 1GHz CPU
• 512 MB SDRAM and 256 MB Flash
• Windows CE 7.0
• Embedded Win-GRAF SoftLogic (IEC 61131-3)
• VGA Port Output
• Modbus RTU/TCP (Master, Slave)
• Support eLogger HMI
• Redundant Power Inputs
Introduction

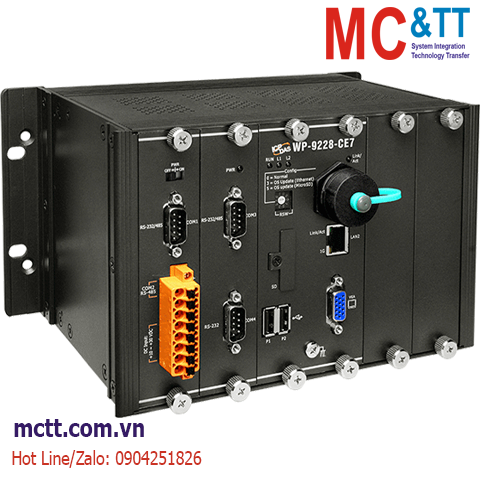

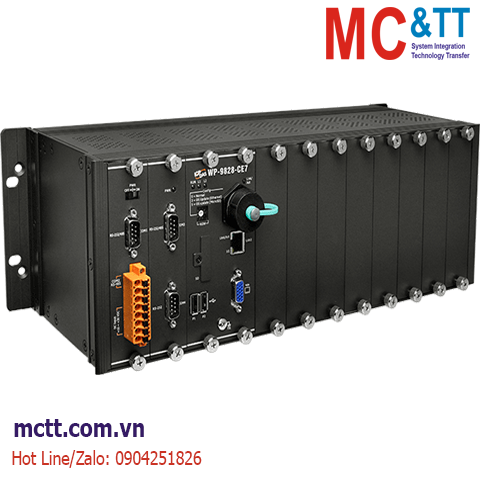

The Win-GRAF WinPAC-9000-CE7 Series (WP-9228-CE7/9428-CE7/9828-CE7) is the new generation Windows CE 7.0 based PAC (Programmable Automation Controller) of ICP DAS. Each WP-9000-CE7 is equipped with a Cortex-A8 (1.0 GHz) CPU running a Windows CE 7.0 operating system, a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and 2/4/8 expansion I/O slots that can be used to integrate high-performance I-9K (parallel-type) and I-97K (serial-type) series I/O modules.
The benefits of running Windows CE 7.0 on a WinPAC device include hard real-time capability, achievable deterministic control and allowing PAC can have a PC-like window displays and operating environment. The WP-9x28-CE7 series PACs are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control applications, and also supporting M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications that can exchange data with Win-GRAF applications. So the application's design is more convenient and more practical.
Win-GRAF Features:
- Data Binding function allows exchanging data among PACs.
- On-line Change function can make minor changes during the project is running. There is no need to call off the running program.
- Support Online debug/ control, and Offline simulation for programs.
- Can create customized Function Blocks using Visual Studio 2008 and run in Win-GRAF.
WP-9000 CE7 Feature:
- Metal Enclosure
- Power/Communication Spring Clamp Terminal Connector
- Rugged RJ-45 Connector for LAN1
Click the link for more information about the hardware information.
Application
Specifications
| Software |
| OS |
Windows CE 7.0 |
| Protocol |
• NET ID
• eLogger HMI
• Modbus TCP/IP Master
• Modbus TCP/IP Slave
• Modbus RTU/ASCII Master
• Modbus RTU Slave
• DCON Protocol
• User-defined Protocol
• I/O Type: DCON, Modbus RTU, and Modbus TCP/IP remote I/O
• Local I/O Modules
• Application Protection
• Data Binding
• On Line Change
• Schedule Control
• Retain Variables
• File Access and Data Log |
| Development |
Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service |
FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server |
| Framework Support |
.Net Compact Framework 3.5 |
| Multilanguage Support |
English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK |
Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit |
| CPU |
Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number |
Yes |
| System Memory |
512 MB DDR3 SDRAM |
| Storage |
256 MB Flash, 4 GB SD card (up to 32 GB) |
| Non-Volatile Memory |
128 KB MRAM, 16 KB EEPROM |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Dual Watchdog Timer |
| Display |
| Signal |
VGA |
| Resolution |
800 x 600, 1024 x 768 |
| LED Indicators |
| Status |
1 x System, 2 x Power, 2 x Programmable |
| I/O Expansion |
| I/O Type |
I-9K, I-97K series |
| Slots |
4 |
| COM Ports |
| Ports |
1 x RS-232, 1 x RS-485, 2 x RS-232/485 (3000 VDC Isolated) |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
Yes, (0 ~ 9) |
| Ethernet |
| Ports |
2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| Power |
| Input Range |
+10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs |
Yes |
| Consumption |
16.8 W |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
300 x 133 x 164 (W x L x H) |
| Installation |
DIN-Rail, Wall mounting |
| Environment |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| WP-9428-CE7 CR |
4-slot Win-GRAF Based PAC with Cortex-A8 CPU and WinCE 7.0 (RoHS) |
