Module RS-485 Modbus RTU 5 kênh đầu vào tương tự AI ICP DAS tM-AD5 CR
Features
- 5-channel Differential Inputs
- Current Inputs
- Adjustable Sampling Rate
- Dual Watchdog
Introduction

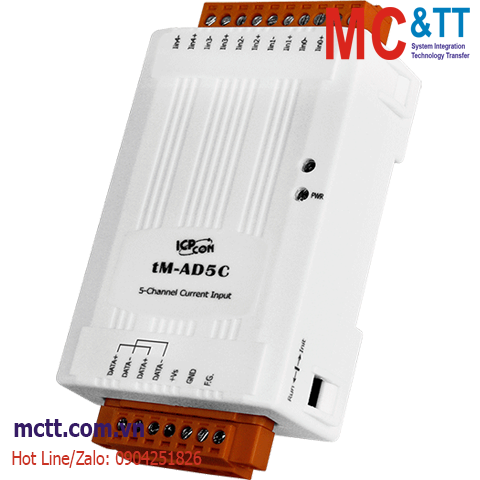

The tM-AD5C is an analog input module that includes 5 differential analog input channels and provides a programmable input range on all analog inputs (+/- 20 mA, 0 ~ 20 mA, 4 ~ 20 mA). The sampling rate of the tM-AD5C is adjustable and is available in either fast or normal mode. It also provides 4 kV ESD protection as well as 2500 Vrms intra-module isolation.
Applications
- Industrial Automation
- Industrial Machinery
- Building Automation
- Food and Beverage Systems
- Semiconductor Fabrication
- Control Systems
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
2500 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication |
| Analog Input |
| Channels |
5 Differential |
| Type |
Current |
| Range |
±20 mA, 0 ~ 20 mA, 4 ~ 20 mA |
| Resolution |
Normal Mode: 14-bit
Fast Mode: 12-bit |
| Accuracy |
Normal Mode: ±0.1%
Fast Mode: ±0.5% |
| Sampling Rate |
Normal Mode: 10 Hz
Fast Mode: 200 Hz |
| Input Impedance |
125 Ω |
| Individual Channel Configuration |
- |
| Zero Drift |
±20 μV/°C |
| Span Drift |
±25 ppm/°C |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1) |
| Protocol |
DCON, Modbus RTU, Modbus ASCII |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
1 W Max. |
| Powered from Terminal Block |
10 ~ 30 VDC |
| Mechanical |
| Dimensions (mm) |
52 x 98 x 27 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +75 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| tM-AD5C CR |
5-channel Isolation Current Input Module (RoHS) |
