Module RS-485 Modbus RTU 5 kênh đầu vào tương tự AI ICP DAS tM-AD5 CR


  • 5-channel Differential Inputs
  • Voltage Inputs
  • Adjustable Sampling Rate
  • Dual Watchdog

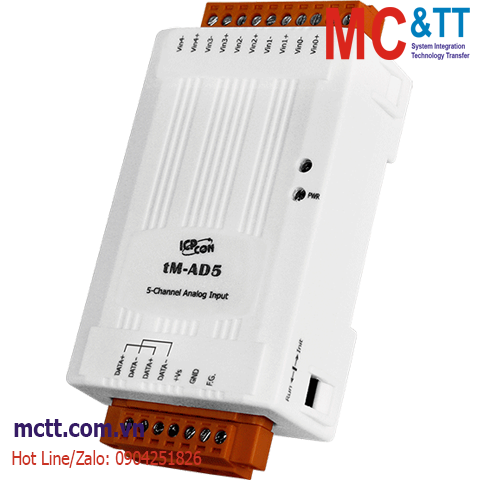

The tM-AD5 is an analog input module that includes 5 differential analog input channels and provides a programmable input range on all analog inputs (±1 V, ±2.5 V, ±5 V, ±10 V). It provides high overvoltage protection of 120 VDC. The sampling rate of the tM-AD5 is adjustable and is available in either fast or normal mode. It also provides 4 kV ESD protection as well as 2500 Vrms intra-module isolation.


  • Industrial Automation
  • Industrial Machinery
  • Building Automation
  • Food and Beverage Systems
  • Semiconductor Fabrication
  • Control Systems


CPU Module
Watchdog Timer Module, Communication (Programmable)
Intra-module Isolation 2500 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
LED Indicators
Status 1 x Power and Communication
Analog Input
Channels 5 Differential
Type Voltage
Range ±1 V, ±2.5 V, ±5 V, ±10 V
Resolution Normal Mode: 14-bit
Fast Mode: 12-bit
Accuracy Normal Mode: ±0.1%
Fast Mode: ±0.5%
Sampling Rate Normal Mode: 10 Hz
Fast Mode: 200 Hz
Input Impedance 20 MΩ
Overvoltage Protection 120 VDC
Individual Channel Configuration -
Zero Drift ±20 μV/°C
Span Drift ±25 ppm/°C
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1)
Protocol DCON, Modbus RTU, Modbus ASCII
Reverse Polarity Protection Yes
Consumption 1 W Max.
Powered from Terminal Block 10 ~ 30 VDC
Dimensions (mm) 52 x 98 x 27 (W x L x H)
Installation DIN-Rail Mounting
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +75 °C
Humidity 10 ~ 95% RH, Non-condensing




Ordering Information

tM-AD5     CR  5-channel Isolation Analog Input Module with High Voltage Protection (RoHS)
