Bộ chuyển đổi 2 kênh video TVI/ CVI/ AHD + RS485 data sang quang 3Onedata SWV61201

Chia sẻ:
Mã sản phẩm: SWV61201
Thương hiệu: 3onedata
Tình trạng:

Hi-Definition Analog Video TVI/CVI/AHD to Fiber Converter

Liên hệ
Mô tả

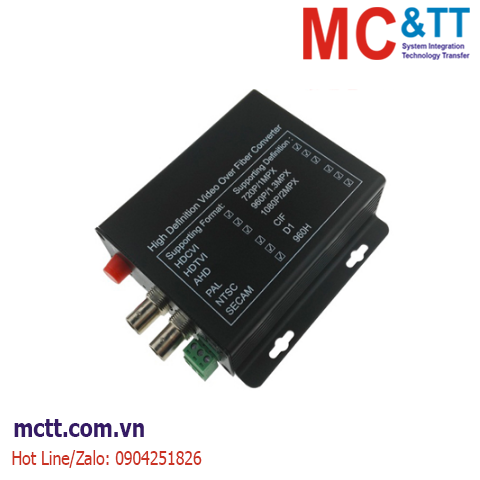

Bộ chuyển đổi 2 kênh video TVI/ CVI/ AHD + RS485 data sang quang 3Onedata SWV61201

Our 2-Ch TVI/CVI/AHD to Fiber Converters is universal type supporting High Definition Analog video format HD-TVI/HD-CVI/AHD, can simultaneously transmit 8 channels video and 1-ch RS485 over one core multimode or single-mode optical fiber. It also supports the regular analog video format such as PAL/NTSC/SECAM; it is a kind of universal fiber transmission solution/product for CCTV analog video/data signals. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.

Tính năng

  • Lossless non-compression real time transmission
  • Automatically identify formats of input video: AHD/ TVI/ CVI/ PAL/ NTSC/ SECAM
  • Support 720P/25/30/50Hz, 960P/25/30Hz, 1080P/30Hz
  • Advanced lightning protection design, support 5.7KV lightning protection
  • Through LED indicators to inform its functional mode
  • Industrial wide range of operational temperature

Thông số kỹ thuật


Wavelength: WDM: 1310nm/1550nm

Output Power: -8~-3dBm

Optic fiber: 50/125u multimode, 62.5/125u multimode, 9/125u single mode

Rx sensitivity: -23dBm

Optical connector: FC, ST, SC (optional)

Distance: 0~550M (MM)/0~80KM (SM) (Default distance is 20Km)


Number of Channels: 2

Input/output impedance: 75 Ohm (unbalance)

Standard video input/output voltage: 1.0Vp-p

Video Bandwidth: 50MHz

Sampling Bandwidth: 8bit

Sampling Frequency: 100MHz

Signal to noise ratio: >67dB

Rise and Fall time: <0.8ns

Optical Signal Intrinsic Jitter: <0.2 UI

Differential Gain: < ±1.5%

Differential Phase: < ±1°

Connector: BNC

Supporting video pixel: 1280(H)x720(V)@30Hz/1MPX





Protocol: Default: RS485 (RS232/RS422 Optional)

Number of channels: 1

Connector: 3pins Terminal Blocks

Data Rate: 0-200Kbps

Directions: Default: Simplex from Rx to Tx (BIDI duplex optional)

Mechanical Structure & Environment

Power: DC5V 2A

Power Consumption: ≤6W

Working Temperature: -15℃~65℃

Storage Temperature: -40℃~85℃

Relative Humidity: 5%~95% (no condensation)

MTBF: ≥ 100000Hours

Thông tin đặt hàng

Model Number Product Configuration Remark Fiber Mode Wavelengths Transmission  Distance
SWV61200 2Ch Forward AHD Video 1080P FC/SC/ST Single-mode 1310 nm 20Km
SWV61201 2Ch Forward AHD Video 1080P +1Ch Reverse Data FC/SC/ST Single-mode WDM:
