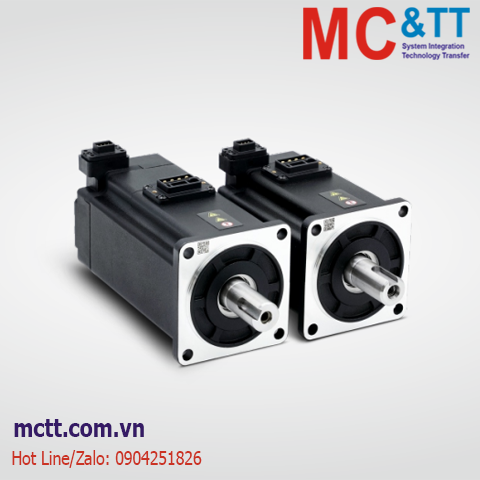

Động cơ DC Servo 400W, 3000 rpm without brake Kinco SMK60D-0040-30QAK-5DCU
Tính năng
- New electromagnetic design
Adopting 12-slot and 10-pole design, with small slot torque and low torque pulsation, which is conducive to reducing the vibration during the operation of the motor and making the torque output more smooth
- New structure and short fuselage
The redesign of the fuselage structure shortens the length of the fuselage, which can save more installation space and reduce the size of the equipment for customers' equipment
The motor in the industry is at the highest insulation level, which can maintain high reliability and stability in high temperature extreme environment
- Energy efficiency class: 2
Thông số kỹ thuật
| Servo motor model |
SMK60D-0020-30Q■K-5DCU |
SMK60D-0040-30Q■K-5DC□ |
Drive power supply voltage
Intermediate link DC voltage VDC |
48 |
48 |
| Rated power Pn(W) |
200 |
400 |
| Rated torque Tn(Nm) |
0.64 |
1.27 |
| Rated speed Nn (rpm) |
3000 |
3000 |
| Rated current In(A) |
5.9 |
10 |
| MAX torqueTm(Nm) |
1.92 |
3.81 |
| MAX current Im (A) |
18.9 |
32 |
MAX speed (rpm)
|
4000 |
3500 |
| Standstill torque Ts(Nm) |
0.7 |
1.4 |
| Standstill current Is(A) |
6.5 |
11 |
| Torque constant Kt (Nm/A) |
0.12 |
0.14 |
| Rotor moment of inertia Jm (Kg·cm ) |
0.21 |
0.43 |
| 0.214 (with brake) |
0.434 (with brake) |
| Brake holding torque T(Nm) |
0.32 |
2 |
| Brake Rated power (W) |
7.5 |
7.5 |
| Brake Rated voltage (VDC) |
24 |
24 |
| Insulation class |
F |
F |
| Max radial force Fr(N) |
115 |
115 |
| Max axial force Fa(N) |
70 |
70 |
| Protection level |
IP54 |
□=A:IP65;□=U:IP54 |
| Cooling method |
Totally enclosed, self-cooling
|
| Temperature |
-20~40℃
|
| Humidity |
Below 90% RH (no condensation)
|
| Ambient environment |
Keep away from corrosion, flammable gases, oil droplets, dust
|
| Altitude |
The highest altitude is 2000m. From 1000 to 2000m, the power decreases by 1.5% per 100m increase |
| Note |
■ = A ： Motor without holding brake
B ：Motor with holding brake
□ =A： Special socketfor common body motor
U： Communication encoder socket
|
Thông tin đặt hàng
Tài liệu
FD1X5S&SMK Low Voltage Servo
