Features

• Remote control via Modbus RTU
• Can be controlled using SCADA, PAC, or PLC
• Can be integrated into a multi-station, multi-axis applications
• 4-axis motion control capability
• 2/3-axis linear interpolation function
• 2-axis circular interpolation function
• Programmable automatic homing function
• EzMove Utility for configuration and macro programming
• Test motion functions via EzMove without compilation
• API Library for rapid development of applications
• Easy wiring for multi-station applications
• Can be set as a remote or stand-alone motion controller
• Supports high-speed FRnet I/O: 128 DO and 128 DI

Introduction

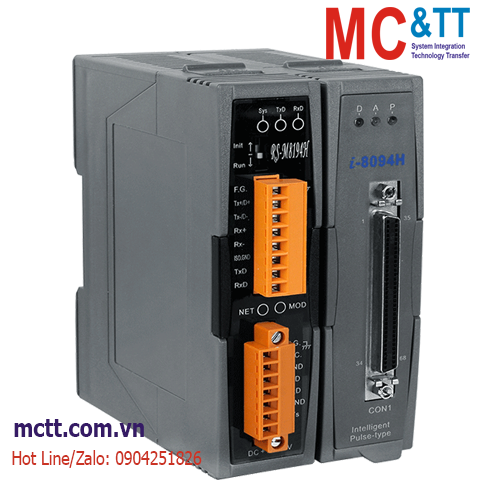

The RS-M8194H is a new product from ICP DAS that can be used to implement remote control functionality via the serial communication and includes an I-8094H module (a 4-axis stepping/pulse-type servo motor control module with an embedded CPU) and a serial communication interface. The intelligent RS-M8194H can provide users with the ability to develop a wide range of remote motion control applications, and can be integrated in any system where the host platform is built on the Modbus RTU protocol (for example: PC, PAC or PLC). ICP DAS also provides the EzMove Utility and an API Library that can be used to configure the RS-M8194H and to rapidly develop customized control applications.

• EzMove Utility
EzMove is a configuration utility developed by ICPDAS for the RS-M8194H controller. It is intended to perform motion control tasks and movement test on equipment without the need to first create customized applications. As the EzMove Utility is a Modbus client, it can be used to create and edit Macro Programs (MP), which can then be uploaded to the RS-M8194H. The EzMove Utility can also display and plot position/velocity of all four axes as well as display Modbus RTU messages for easy reference.



• API Library
The RS-M8194H API Library is composed of nine groups of functions, which can be utilized to edit Macro Programs (MP) and send Modbus RTU commands required to control or configure the I-8094H. The library provides users with the ability to simultaneously control a large number of RS-M8194H from the PC. DLL and libraries for the following development environments are provided:
• Visual C++
• BCB 5.0, 6.0
• C#, VB.NET
• Visual Basic 6.0

Applications

• X-Y-Z Table
• Fix-Pitch Stamping Machine
• Transfer Machine
• Spinner
• Loader/Unloader

Specifications

Download

Datasheet

Documents

Ordering Information
