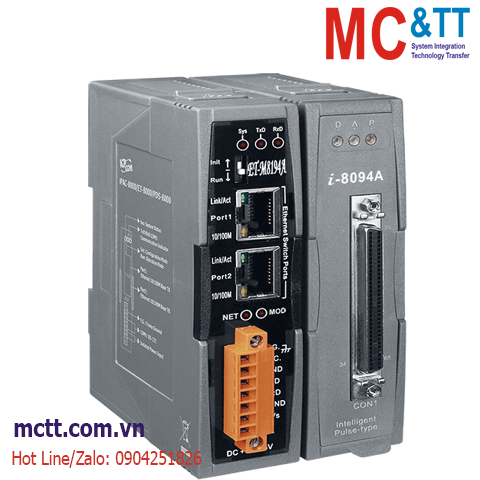

Module Ethernet TCP điều khiển 4-axis Motion ICP DAS ET-M8194A CR
Features
- Remote control via Modbus TCP
- Can be controlled using SCADA, PAC, or PLC
- Can be integrated into a multi-station, multi-axis applications
- 4-axis motion control capability
- 2/3-axis linear interpolation function
- 2-axis circular interpolation function
- Programmable automatic homing function
- EzMove Utility for configuration and macro programming
- Test motion functions via EzMove without compilation
- Library for rapid development of applications
- Easy wiring for multi-station applications
- Can be set as a remote or stand-alone motion controller
Introduction
ET-M8194A is a remote four-axis stepping/pulse-type servo motor controller and acts as a server in a Modbus TCP/IP network. This intelligent motion controller also has a variety of built-in motion control functions, such as 2/3- axis linear interpolation, 2-axis circular interpolation, T/S-curve acceleration/deceleration, various synchronous actions, and automatic homing.
The controller is suitable for a wide range of remote motion control applications and can be integrated into any system where the host platform is built on the Modbus TCP protocol (for example PC, PAC, or PLC). In addition, a multi-station, multi-axis motion control solution can easily be achieved by cascading several ET-M8194A devices using Ethernet cables, either with or without Ethernet switches. Software configuration utility and API Library are provided to configure the ET-M8194A and to rapidly develop customized control applications.
• EzMove Utility
An EzMove utility is provided for configuring the ET-M8194A and assisting the user in writing macro programs and in getting familiar with the ET-M8194A and its motion commands. Furthermore, it can be used for motion monitoring and tracking of the motion path.
• API Library
The ET-M8194A/H API Library consists of several single and multi-axis configuration and motion control commands. In addition, APIs are provided to edit and download Macro Programs (MP). No Modbus knowledge is required as the library handles all Modbus communication internally.
DLL and libraries for the following development environments are provided:
• Visual C++
• BCB 5.0, 6.0
• C#, VB.NET
• Visual Basic 6.0
Applications
- X-Y-Z Table
- Fix-Pitch Stamping Machine
- Transfer Machine
- Spinner
- Loader/Unloader
Specifications
| Software |
| OS Support |
Windows 7/8/10
32/64 bit |
| Development |
Visual C++ lib/DLL
C#, VB.Net DLL
Visual Basic 6.0
BCB 5.0, 6.0
Macro Programming |
| Utility |
EzMove Utility |
| Hardware |
| Connector |
68-pin SCSI-II |
| General |
| No. of Axes |
4 |
| Motion Control Type |
IC Chip Based |
| Synchronous Action |
10 activation factors and 14 actions |
| Speed Profile |
T/S-curve |
| Position Control Mode |
Incremental
and absolute mode |
| Command Type |
Pulse Command |
| Auto-Home Search |
Yes |
| Input Signal Filter |
2 ~ 16 ms, 8 stages |
| Axis I/O |
| Servo Interface Output |
SVON |
| Latch Input |
Yes |
| Manual Pulse Generator |
Yes |
| Mechanical Switch Input |
Home, Limit+/-, Near Home, Emergency |
| Position Compare Output |
10 KHz (X and Y only) |
| Servo Interface Input |
INP, ALM |
| Encoder Input |
| Mode |
A/B Phase, Up/Down |
| Ring Counter Mode |
32-bit |
| Counting Rate |
4 MHz |
| Counter Width |
32-bit |
| Pulse Output |
| Mode |
CW/CCW, PULSE/DIR |
| Counter Width |
32-bit |
| Rate |
4 MPPS (Max.) |
| Interpolation |
| Circular |
Any 2 axes (one group only) |
| Continuous |
Yes |
| Linear |
Any 2 to 3 axes (one group only) |
| Digital Input |
| Channels |
Local: 4 DI |
| Isolation |
2500 Vrms (with DN-8468) |
| Digital Output |
| Channels |
- |
| Isolation |
2500 Vrms (with DN-8468) |
| Ethernet |
| Protocol |
Modbus TCP |
| Mechanical |
| Dimensions (mm) |
65 x 121 x 99 (W x L x H) |
| Environment |
| Operating Temperature |
-20 ~ +75°C |
| Storage Temperature |
-30 ~ +85°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ET-M8194A |
Ethernet Remote Unit with High-speed 4-axis Motion Control Module |
