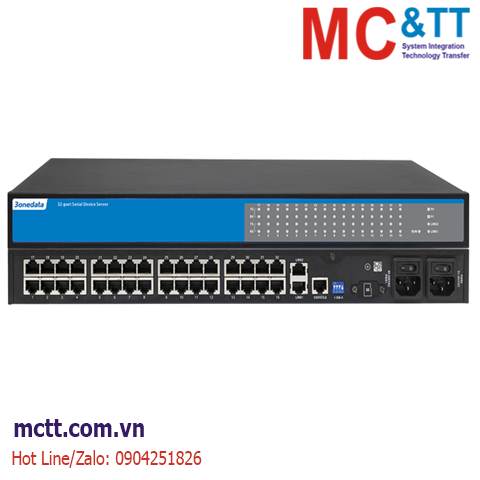

Bộ chuyển đổi 8 cổng RS-232/485/422 sang 2 cổng Ethernet 3Onedata NP5100-2T-8DI(3IN1)-RJ-2P(85-265VAC)
NP5100 series are the serial device servers that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This product supports 8/16/32 RS-232/485/422 serial ports to 2 100M Ethernet copper ports. It adopts rack mounting to meet the requirements of different application scenes.
Serial device server supports multiple network protocols, such as TCP, UDP, RFC2217, TELNET, ARP, ICMP, HTTP, HTTPS, SNMP, SSH, SMTP, SNTP, DNS, BOOTP and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports RealCom, Reverse RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217, Redundant COM, DRDAS RealCom and DRDAS TCP Server work modes and TELNET, WEB and SSHD access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
This product supports optional OLED display, which could conduct IP address configuration without using external device. SD card can achieve software upgrade of the device. Support setting pull up resistor and terminal resistance by DIP switch. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can adapt to the industrial scene environment with harsh requirements for EMC. It can be widely used in custom checkpoint system, smart gas station, data center and industrial automation, etc.
Tính năng
- Support 8/16/32 3IN1 serial ports to 2 10/100Base-T(X) self-adaptive Ethernet interfaces
- Support network modes such as redundant mode, switching mode and dual IP mode to meet the needs of various network environments
- Support RealCom, Reverse RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217, Redundant COM, DRDAS RealCom, DRDAS TCP Server and other operating modes
- Support dual power supply 85~265VAC wide voltage input range
- Support -40~ 75℃ wide temperature operation
- Support optional OLED display, its device information could be configured
Thông số kỹ thuật
|
Ethernet |
Standard: 10Base-T, 100Base-TX
Protocol: TCP, UDP, ARP, HTTP, HTTPS, TELNET, ICMP, SMTP, SNTP, DHCP, DNS
Rate: 10/100M Automatic Flow Control, MDI/MDI-X Autotunning
Interface form: RJ45
Interface quantity: 2
Duplex mode: full/half duplex mode self-adaption
Work mode: each serial port can simultaneously establish up to 4 TCP/UDP session connections, support work modes such as RealCom, Reverse RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217, Redundant COM, DRDAS RealCom and DRDAS TCP Server |
|
Serial Port |
Standard: EIA RS-232C, RS-485, RS-422
Quantity of serial port: 8/16/32 3IN1 serial ports
RS-232 signal: RXD, TXD, DTR, GND, DSR, RTS, CTS, DCD
RS-485 signal: D+, D-, GND
RS-422 signal: T+, T-, GND, R+, R-
Baud rate: 110bps-921600bps
Data bit: 5bit, 6bit, 7bit, 8bit
Parity bit: None, Even, Odd, Space, Mark
Stop bit: 1bit, 1.5bit, 2bit
Interface form: RJ45
Flow control: RTS/CTS, DTR/DSR, XON/XOFF
Direction control: RS-485 direction adopts Automatic Data Direction Control (ADDC)
Load capacity: RS-485/422 supports 32 points polling (customizable 256 points)
Transmission distance: RS-232, 15m; RS-485/422, 1200m
Pull up/down resistance for RS-485: 4.7kΩ
Electromagnetic isolation strength: 2kVDC |
|
Console Port |
CLI command line management port (RS-232), RJ45 |
|
Configuration Method |
WEB configuration management, TELNET configuration, Windows configuration tool, SSHD configuration |
|
Security |
User right classification, IP address filtering, MAC address filtering, SNMP/ Mail /System Log alarm, HTTP/HTTPS/SSHD/TELNET access control |
|
Indicator |
Power supply indicator, Ethernet port indicator, serial port indicator, running indicator |
|
Power Supply |
85~265VAC dual power supply redundancy, AC power supply socket with switch |
|
Power Consumption |
No-load: 5.6W@220VAC
Full-load: 13.2W@220VAC |
|
Working Environment |
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95%(no condensation) |
|
Physical Characteristic |
Housing: IP40 protection, metal
Installation: rack mounting
Dimension (W x H x D): 440mm×44mm×265.6mm
Weight: 3.04kg |
|
Industrial Standard |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 4
- Air discharge:± 15kV
- Contact discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient), Level 4
- Power supply: ±4kV
- Ethernet port: ±2kV
- Serial port: ±2kV
IEC 61000-4-5 (Surge), Level 4
- Power supply: common mode±4kV, differential mode±2kV
- Network port: common mode±4kV, differential mode±2kV
- Serial port: common mode±4kV, differential mode±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6 |
|
Authentication |
CE, FCC, RoHS |
Thông tin đặt hàng
- NP5100-2T-8DI(3IN1)-RJ-2P(85-265VAC)
8*RS-232/485/422 + 2*10/100Base-T(X) RJ45 (dual IPs and MACs), dual power supply 85~265VAC, rack mounting
