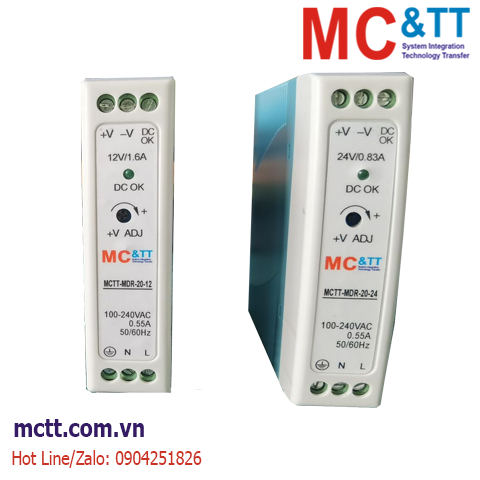

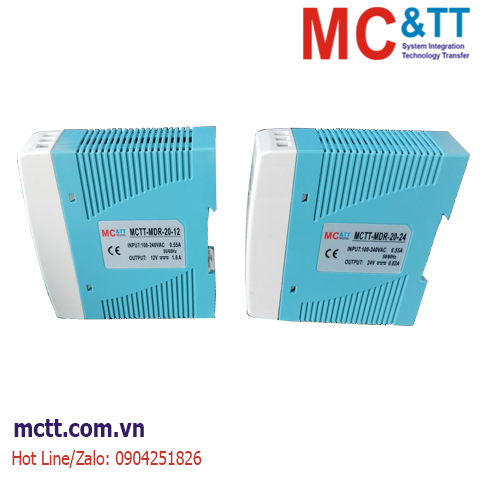

Bộ đổi nguồn Din-Rail 220VAC sang 12VDC 20W MCTT-MDR-20-12
Chúng tôi – MC&TT là nhà sản xuất bộ đổi nguồn MCTT-MDR-20-12 tại Việt Nam, xin thông báo:
MCTT-MDR-20-12 đã dừng sản xuất và được nâng cấp thay thế bằng MCD20-12
Features:
- Universal AC input/ full range
- Protections: Short circuit/ Over load/ Over voltage
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- isolation classⅡ
- LED indicator for power on
- 100% full load burn-in test
- 1 years warranty
|
OUTPUT |
|
|
Model |
MCTT-MDR-20-5 |
MCTT-MDR-20-12 |
MCTT-MDR-20-24 |
|
DC Voltage |
5V |
12V |
24V |
|
Rated Current |
3A |
1.67A |
1A |
|
Current Range |
0-3A |
0-1.67A |
0-1A |
|
Rated Power |
15W |
20W |
24W |
|
Ripple & Noise |
80mVp-p |
120mVp-p |
150mVp-p |
|
Voltage Adj. Range |
4.75~5.5V |
10.8~13.2V |
21.6~26.4V |
|
Voltage Tolerance |
±2% |
±1% |
±1% |
|
Setup, Rise Time |
500ms,30ms/230VAC; 1000ms,30ms/115VAC at full load |
|
Hold Up Time |
50ms/230VAC; 20ms/115VAC at full load |
|
INPUT |
|
|
Voltage Range |
88~264VAC (47~63Hz); 124~370VDC |
|
AC Current |
0.05A/115V; 0.35A/ 230V |
|
Efficiency |
76% |
80% |
84% |
|
Inrush Current |
Cold start, 20A at 115VAC, 40A at 230VAC |
|
Leakage Current |
<1mA/240VAC |
|
PROTECTION |
|
|
Over Load |
105%~160% |
|
Protection type: Constant current limiting, recovers automatically after fault condition is removed |
|
Over Voltage |
115%~135% |
|
Protection type: Shut down o/p voltage, re-power on to recover |
|
Function |
Type |
Open collector |
|
DC OK active signal (max.) |
3.75~6V / 50mA |
9~13.5V / 40mA |
18~27V / 20mA |
|
Environment |
Working Temp. |
-20 ~ +70℃ (Refer to “Derating Curve”) |
|
Working Humidity |
20 ~ 90% RH non-condensing |
|
Storage Temp., Humidity |
-40 ~ +85℃, 10 ~ 95% RH |
|
Temp. Coefficient |
±0.03%/℃ (0 ~ 50℃) |
|
Vibration |
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
|
Safety |
Safety Standards |
UI508, TUV EN60950-1, NEC class 2 compliant |
|
Withstand Voltage |
I/P-O/P:3KVAC, I/P-FG:2KVAC, 1minute |
|
EMC standards |
EN55022 class B, EN61000-3-2,-3, ENV50204, EN61000-4-2,3,4,5,6,8,11, EN61204-3 |
|
Others |
Dimension |
22.5*90*100mm (L*W*H) |
|
Weight |
0.2Kg |
|
Connection |
I/P: 3 poles, O/P: 3 poles screw DIN terminal |
|
Note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
5. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time. |
