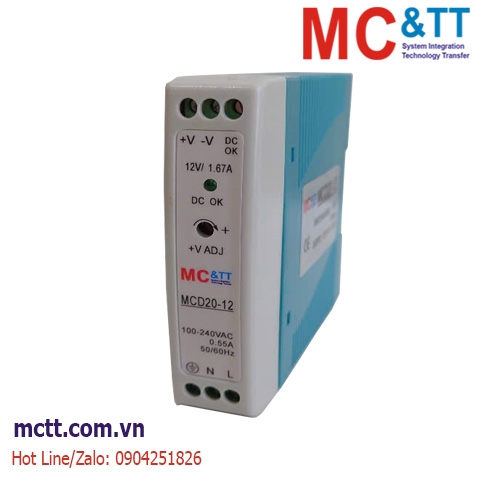

Bộ đổi nguồn Din-Rail MCTT MCD20-12 20W, 12VDC, 1.67A

Mã sản phẩm: MCD20-12

Thương hiệu: MCTT

Tình trạng:

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

Bộ đổi nguồn Din-Rail MCTT MCD20-12 20W, 12VDC, 1.67A

Features:

OUTPUT
Model	MCD20-5	MCD20-12	MCD20-24
DC Voltage	5V	12V	24V
Rated Current	3A	1.67A	1A
Current Range	0-3A	0-1.67A	0-1A
Rated Power	15W	20W	24W
Ripple & Noise	80mVp-p	120mVp-p	150mVp-p
Voltage Adj. Range	4.75~5.5V	10.8~13.2V	21.6~26.4V
Voltage Tolerance	±2%	±1%	±1%
Setup, Rise Time	500ms,30ms/230VAC; 1000ms,30ms/115VAC at full load
Hold Up Time	50ms/230VAC; 20ms/115VAC at full load
INPUT
Voltage Range	88~264VAC (47~63Hz); 124~370VDC
AC Current	0.05A/115V; 0.35A/ 230V
Efficiency	76%	80%	84%
Inrush Current	Cold start, 20A at 115VAC, 40A at 230VAC
Leakage Current	<1mA/240VAC
PROTECTION
Over Load	105%~160%
Over Load	Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage	115%~135%
Over Voltage	Protection type: Shut down o/p voltage, re-power on to recover

Function	Type	Open collector
	DC OK active signal (max.)	3.75~6V / 50mA	9~13.5V / 40mA	18~27V / 20mA
Environment	Working Temp.	-20 ~ +70℃ (Refer to “Derating Curve”)
	Working Humidity	20 ~ 90% RH non-condensing
	Storage Temp., Humidity	-40 ~ +85℃, 10 ~ 95% RH
	Temp. Coefficient	±0.03%/℃ (0 ~ 50℃)
	Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Safety	Safety Standards	UI508, TUV EN60950-1, NEC class 2 compliant
	Withstand Voltage	I/P-O/P:3KVAC, I/P-FG:2KVAC, 1minute
	EMC standards	EN55022 class B, EN61000-3-2,-3, ENV50204, EN61000-4-2,3,4,5,6,8,11, EN61204-3
Others	Dimension	22.590100mm (LWH)
	Weight	0.2Kg
	Connection	I/P: 3 poles, O/P: 3 poles screw DIN terminal
Note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.

Datasheet
