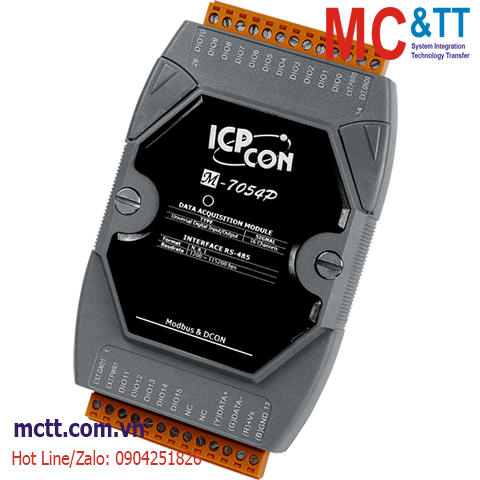

Module RS-485 Modbus RTU 16 kênh đầu vào/ra số DI/DO ICP DAS M-7054P-G CR
Features
- 16 Universal Digital Inputs or Outputs
- 500 mA Load Current per Channel with Short Circuit Protection
- Digital Input Channels Can be Used as 16-bit Counters
- Configurable Power-on Value and Safe Value Settings
Introduction
M-7054P/M-7054PD provides 16 channels for universal digital input or output, which can be selected via wire connections. The digital input channels are dry contact and can be used as 16-bit counters, while the digital output channels are sink-type with short circuit protection. M-7054PD has 16 LED indicators for channel status monitoring. M-7054P(D) supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. ±8 kV ESD, ±4 kV EFT, ±3 kV surge protection, and 3750 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments.
Applications
• All Types of ON/OFF Control
• Building Automation
• Industrial Automation
• Industrial Machinery
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
3750 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±8 kV Contact for Each Terminal
±16 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
±3 kV for Power Line |
| LED Indicators |
| Status |
1 x Power and Communication |
| Digital Input/Counter |
| Channels |
16-channel Isolated Universal Digital Input/Output (Configurable via Wire Connection) |
| Type |
Dry Contact |
| ON Voltage Level |
Close to GND |
| OFF Voltage Level |
Open |
| Max. Counts |
65535 (16-bit) |
| Frequency |
100 Hz |
| Min. Pulse Width |
10 ms |
| Overvoltage Protection |
±60 VDC |
| Digital Output |
| Channels |
16-channel Isolated Universal Digital Input/Output (Configurable via Wire Connection) |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+5 ~ +50 VDC |
| Load Current |
500 mA |
| Overvoltage Protection |
60 VDC |
| Overload Protection |
Yes |
| Short-circuit Protection |
Yes |
| Power on Value |
Programmable |
| Safe Value |
Programmable |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1) |
| Protocol |
Modbus RTU, DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
1.2 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| M-7054P-G CR |
16-ch Isolated Universal DI/DO Module (500 mA Max.), using DCON and Modbus Protocols (Gray Cover) (RoHS) |
