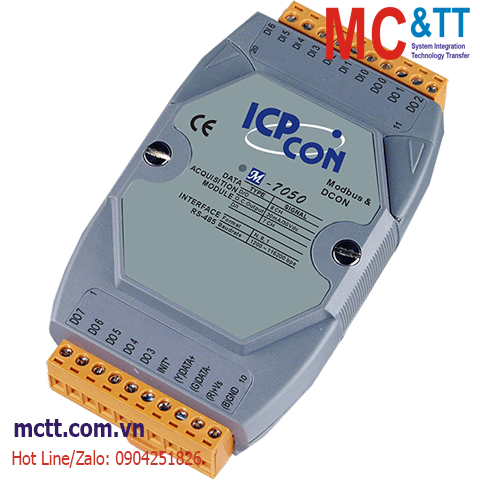

Module RS-485 Modbus RTU 7 kênh đầu vào số DI + 8 kênh đầu ra số DO ICP DAS M-7050-G CR
Features
- 7 Digital Inputs and 8 Digital Outputs
- Sink-type Open Collector Output
- Non-isolated for All Channels
- Digital Input Channels Can be Used as 16-bit Counters
- Configurable Power-on Value and Safe Value Settings
- Built-in Dual Watchdog
Introduction
M-7050/M-7050D offers 7 channels for digital input and 8 channels for digital output, each of which is non-isolated. M-7050(D) supports sink- or source-type input, also sink-type open collector output. All input channels can be used as 16-bit counters. M-7050D has 15 LED indicators for channel status monitoring. M-7050(D) supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. All hardware specifications are the same as I-7050(D).
Applications
• All Types of ON/OFF Control
• Building Automation
• Industrial Automation
• Industrial Machinery
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| LED Indicators |
| Status |
1 x Power and Communication |
| Digital Input/Counter |
| Channels |
7 |
| Type |
Dry Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
Open |
| OFF Voltage Level |
Close to GND |
| Max. Counts |
65535 (16-bit) |
| Frequency |
100 Hz |
| Min. Pulse Width |
5 ms |
| Effective Distance |
500 m Max. |
| Input Impedance |
100 kΩ |
| Digital Output |
| Channels |
8 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+3.5 ~ +30 VDC |
| Load Current |
30 mA/Channel |
| Power on Value |
Programmable |
| Safe Value |
Programmable |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol |
Modbus RTU, DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
0.4 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| M-7050-G CR |
7-ch Non-isolated (Dry) DI and 8-ch Non-isolated (Sink, NPN) DO Module using DCON and Modbus Protocols (Gray Cover) (RoHS) |
