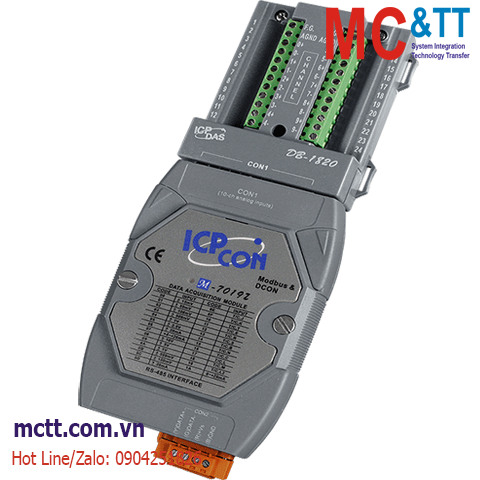

Module RS-485 Modbus RTU 10 kênh đầu vào tương tự AI ICP DAS M-7019Z-G/S CR

Chia sẻ:
Mã sản phẩm: M-7019Z-G/S
Thương hiệu: ICP DAS
Tình trạng:

10-ch Universal AI Module

Liên hệ
Mô tả

Module RS-485 Modbus RTU 10 kênh đầu vào tương tự AI ICP DAS M-7019Z-G/S CR

Features

  • 10 Analog Inputs
  • Provides Stable and Consistent Temperature Output
  • Jumper Selectable Voltage or Current Input
  • High Over-voltage Input Protection
  • Individual Channel Configuration
  • Open Thermocouple Detection
  • Built-in Dual Watchdog

Introduction

M-7019Z is a 10-channel universal analog input module with an RS-485 interface that is specially designed for extremely accurate thermocouple measurement and features automatic cold-junction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. The innovative design of the enhanced model ensures that thermocouple measurement is more accurate than with the earlier design.

Besides the thermocouple inputs, the M-7019Z also supports voltage and current inputs. The voltage input range can be from ±15 mV to ±10 V, and the current input range can be either 4 ~ 20 mA, 0 ~ 20 mA, or ± 20 mA. Up to 10 analog inputs of different types can be connected to a single module.The module also provides up to 240 Vrms overvoltage protection and features per-channel open wire detection for the thermocouple and +4 ~ +20 mA input types.



Applications

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
Intra-module Isolation 3000 VDC
EMS Protection
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
LED Indicators
Status 1 x Power and Communication
Analog Input
Channels 10 Differential
Type Voltage
Current
Thermocouple
Sensor Type Thermocouple: J, K, T, E, R, S, B, N, C, L, M, LDIN43710
Temperature Output Consistency Yes
Stable Temperature Output in the Field Yes
Resolution 16-bit
Accuracy ±0.1% of FSR
Sampling Rate 10 Hz
Bandwidth 15.7 Hz
Input Impedance Voltage: >400 kΩ
Current: 125 Ω
Common Mode Rejection 86 dB Min.
Normal Mode Rejection 100 dB
Overvoltage Protection 240 Vrms
Individual Channel Configuration Yes
Open Wire Detection Software Selectable
Zero Drift ±20 μV/°C
Span Drift ±25 ppm/°C
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 1.8 W Max.
Mechanical
Dimensions (mm) M-7019Z: 116 x 73 x 34 (W x L x H)
DB-1820: 65 x 78 x 22 (W x L x D)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

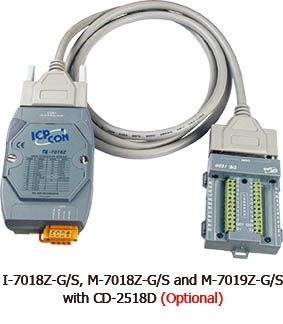

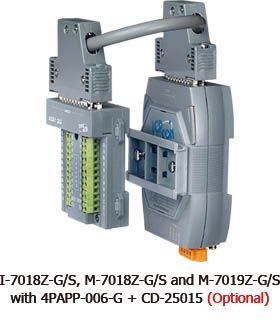

Ordering Information

M-7019Z-G/S     CR  10-ch Universal AI Module using DCON and Modbus Protocols (Gray Cover) (RoHS)
Includes DB-1820 Daughter Board and Plastic DIN Rail (4PAPP-006-G)
