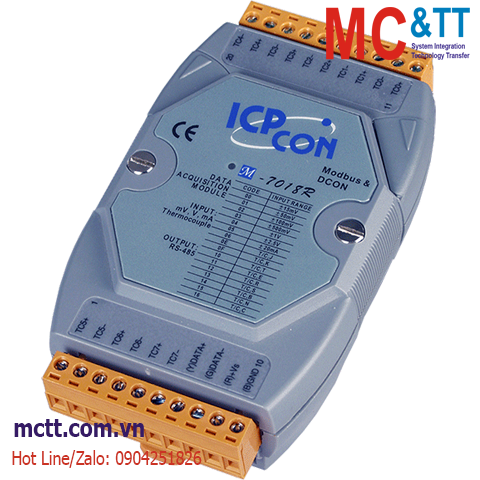

Module RS-485 Modbus RTU 8 kênh đầu vào tương tự (Dòng điện, điện áp, cặp nhiệt) ICP DAS M-7018R-G CR

Chia sẻ:
Mã sản phẩm: M-7018R-G
Thương hiệu: ICP DAS
Tình trạng:

8-ch Thermocouple Input Module with High Voltage Protection

Liên hệ
Mô tả

Module RS-485 Modbus RTU 8 kênh đầu vào tương tự (Dòng điện, điện áp, cặp nhiệt) ICP DAS M-7018R-G CR

Features

  • 8 Differential Analog Inputs
  • Current, Voltage, and Thermocouple Inputs
  • High Over-voltage Input Protection
  • Built-in Dual Watchdog

Introduction

M-7018/M-7018R is an 8-channel analog input module that supports current, voltage, and thermocouple input. M-7018R is an upgraded version of M-7018 that includes an extremely high-quality protection mechanism where the overvoltage protection can be as high as 240 Vrms. M-7018R is more suitable for critically harsh environments, and the newly-added open thermocouple detection feature makes M-7018R more attractive than ever.



M-7018/M-7018R also features 4 kV ESD protection and 3000 VDC intra-module isolation. M-7018/M-7018R supports Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as I-7018/I-7018R.

Applications

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
Intra-module Isolation 3000 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
Surge (IEC 61000-4-5) ±0.5 kV for Power Line
LED Indicators
Status 1 x Power and Communication
Analog Input
Channels 8 Differential
Type Voltage
Current
Thermocouple
Sensor Type Thermocouple: J, K, T, E, R, S, B, N, C
Range Voltage: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V
Current: ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA (requires an optional external 125 Ω resistor)
Resolution 16-bit
Accuracy ±0.1% of FSR
Sampling Rate 10 Hz (Total)
Input Impedance > 400 kΩ
Common Voltage Protection 200 VDC
Overvoltage Protection 240 Vrms
Overcurrent Protection Yes
Individual Channel Configuration Yes (Note)
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol Modbus RTU, DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 1.0 W
Mechanical
Dimensions (mm) 123 x 72 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

M-7018R-G     CR  8-ch Thermocouple Input Module with High Voltage Protection using DCON and Modbus Protocols (Gray Cover) (RoHS)
