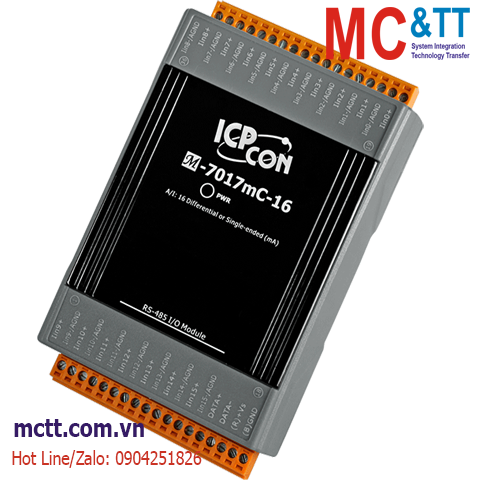

Module RS-485 Modbus RTU lưu trữ dữ liệu Data Logger 100.000 bản ghi 16 kênh đầu vào tương tự AI  ICP DAS M-7017mC-16-G CR

Features

  • 16 Current Inputs
  • Built-in Resistor to Simplify Current Measurement
  • Jumper Selectable Differential or Single-ended Wiring
  • 16-bit Resolution
  • Adjustable Sampling Rate (Fast/Normal Mode)
  • Storage for up to 100,000 Records from16 Current Inputs
  • Built-in Dual Watchdog

Introduction

M-7017mC-16 is a 16-channel current input module that is specifically designed to measure current only. Its user-friendly design saves both time and effort when measuring current thanks to built-in resistors, meaning that you can now measure current directly without adding an external resistor. The module also provides 4 kV ESD protection and 110 VDC overvoltage protection for the current input and features 3000 VDC intra-module isolation and open wire detection for 4 ~ 20 mA input.

The sampling rate of M-7017mC-16 is adjustable, meaning that either fast mode or normal mode can be set. The module contains a data logger that can be used to record the current input from all 16 channels, including date and time stamps, and can store up to 100,000 downloadable records.

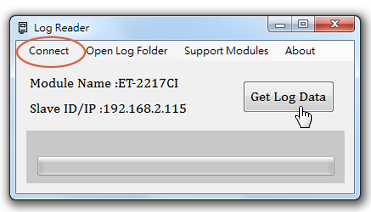

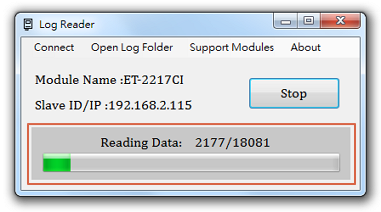

LogReader is a simple tool that can be used to read the log data of the module and then export it to a CSV file. The user can download it from the Download Center.


Applications

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

Data Logger
Max. Records Up to 100,000 records from 16 current input channels
CPU Module
Real Time Clock Yes
Watchdog Timer Module, Communication (Programmable)
Isolation
Intra-module Isolation 3000 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
Surge (IEC 61000-4-5) ±2 kV for Power Line
LED Indicators
Status 1 x Power and Communication
Analog Input
Channels 16 Differential or Single-ended Wiring (Jumper Selectable)
Type ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA
Resolution 16-bit
Accuracy Normal Mode: ±0.1% of FSR
Fast Mode: ±0.2 % of FSR
Sampling Rate Normal Mode: 10 Hz
Fast Mode: 200 Hz
Common Voltage Protection 25 VDC
Overvoltage Protection 110 VDC
Overcurrent Protection 50 mA at 110 VDC
Individual Channel Configuration Yes
Open Wire Detection Yes
Zero Drift ±20 μV/°C
Span Drift ±25 ppm/°C
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol Modbus RTU, DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +48 VDC
Consumption 0.6 W
Mechanical
Dimensions (mm) 121 x 76 x 42 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

M-7017mC-16-G     CR  16-ch Current Input Module with Data Logger using DCON and Modbus Protocols (Gray Cover) (RoHS)
