Module RS-485 Modbus RTU 8 kênh AI + 4 kênh Relay ICP DAS M-7003-G CR
Features
- Voltage and Current Inputs
- High Resolution: 16-bit
- Photocoupler Isolation
- Support Relay Outputs
- Built-in Dual Watchdog
Introduction

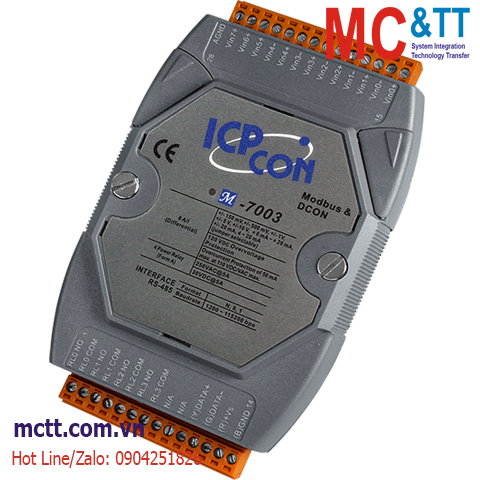

M-7003 is a 16-bit, 8-channel analog input, and 4-channel relay output module. All of its channels are Form A type relay module that provides programmable input range on all analog channels (±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, and 4 ~ 20 mA). Each analog channel is allowed to configure an individual range and has 120 VDC high overvoltage protection. Jumper selectable for voltage or current input. The sampling rate of M-7003 is changeable; there are fast mode and normal mode for your consideration. M-7003 also has a qualification for 4 kV ESD protection as well as 2500 VDC intra-module isolation.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
2500 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) |
±3 kV for Power Line |
| LED Indicators |
| Status |
1 x Power and Communication |
| Analog Input |
| Channels |
8 (5 Differential and 3 Single-ended) |
| Type |
Voltage
Current |
| Range |
±150 mV, ±500 mV, ±1 V , ±5 V, ±10 V
±20 mA , 0 ~ 20 mA, 4 ~ 20 mA (Jumper selectable) |
| Resolution |
16-bit |
| Accuracy |
Normal Mode: 0.1% of FSR
Fast Mode: 0.5% of FSR |
| Sampling Rate |
Normal Mode: 10 Hz
Fast Mode: 60 Hz |
| Input Impedance |
Voltage: 20 MΩ (Differential)
Currnet: 10 MΩ (Single-ended) |
| Common Voltage Protection |
±15 VDC |
| Overvoltage Protection |
120 VDC |
| Individual Channel Configuration |
Yes |
| Relay Output |
| Channels |
4 |
| Type |
Power Relay (Form A) |
| Contact Rating |
5 A @ 250 VAC
5 A @ 30 VDC |
| Operate Time |
3 ms |
| Release Time |
2 ms |
| Electrical Endurance |
10^5 ops. |
| Mechanical Endurance |
2 x 10^7 ops. |
| Surge Strength |
3000 VDC |
| Power on Value |
Programmable |
| Safe Value |
Programmable |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol |
Modbus RTU, DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
1.8 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| M-7003-G CR |
8-ch AI and 4-ch Relay Module using DCON and Modbus Protocols (Gray Cover) (RoHS) |
