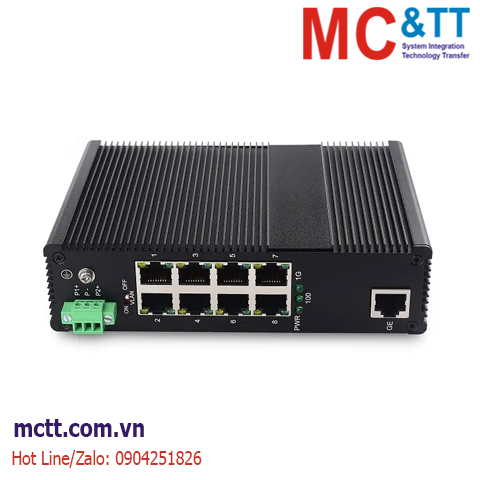

Switch công nghiệp 8 cổng Ethernet + 1 cổng Gigabit Ethernet JHA Tech JHA-IG1F8H
JHA-IG1F8H is a plug-and-play unmanaged industrial Ethernet switch, which can provide economical solution for your Ethernet. Its dust-proof fully sealed structure(IP40 protection grade), over-current, over-voltage and EMC protected, redundant double power input as well as built-in intelligent alarm design can help system main tenancy personnel monitor the network operation, which can work reliably in harsh and dangerous environment.
JHA-IG1F8H support 1 10/100/1000Base-T(X) port and 8 10/100Base-T(X) Ethernet port. It support CE, FCC, RoHS standard, rugged high-strength metal case, power input (DC10-58V). The switch support IEEE802.3, IEEE802.3u, IEEE802.3x with 10/100Base-T(X), full/half-duplex, and MDI/MDI-X auto-adaptation, the -40-85℃ operating temperature can meet all kinds of industrial environment requirement, providing reliable and economic solution for your industrial Ethernet network.
Tính năng
- Support 1 10/100/1000Base-T(X) Ethernet port. and 8 10/100Base-T(X) Ethernet port.
- Support IEEE802.3, IEEE802.3u, IEEE802.3x.
- Plug-and-play, 10/100Base-T(X), full/half duplex, MDI/MDI-X auto-adaptation.
- Industrial chip design, 15kV ESD protection, 8kV surge protection.
- DC10-58V redundancy power, reverse polarity protection.
- Industrial grade 4 design, -40-85°C operating temperature.
- IP40 rated aluminum alloy housing, DIN-Rail mounted.
Thông số kỹ thuật
|
Protocol Standard |
IEEE802.3, IEEE802.3u, IEEE802.3x |
|
Flow Control |
IEEE802.3x flow control, back press flow control |
|
Switching Performance |
VLAN support and quantity:Support 16 VLAN IDs
Transmission Mode: Store and Forward
Packet Buffer Size: 448K
Backplane Bandwidth: 3.6Gbps
MAC Table Size: 2K
Delay Time: < 10μs |
|
Ethernet Port |
10/100/1000Base-T(X) auto speed control, full/half duplex and MDI/MDI-X auto-adaptation |
|
LED Indicator |
Power indicator: PWR (green);
Optical port: FX (green);
Network port indicator: yellow(100/1000 or POE) Green (Link) |
|
Power Supply |
Input Voltage: DC10-58V/AC 100-240V 50-60HZ
Connector: 3P Phoenix terminal, dual power supply redundancy
Full Load: <3W
Protection Mechanism: overload protection, reverse connection protection, redundancy protection |
|
Mechanical Structure |
Shell: IP40 protection, aluminum alloy housing
Dimension: 158*118*42mm( L*W*H )
Weight: 750g
Installation: DIN-Rail mounting, wall mounting |
|
Operating Environment |
Operating Temperature: -40-85°C
Storage Temperature: -40-85°C
Ambient Relative Humidity: 5%-95% (non-condensing) |
|
Industry Standards |
IEC 61000-4-5 Level 3（4KV/2KV）（8/20us）
IEC 61000-4-5 Level 3（6KV/2KV）（10/700us）
IEC 61000-4-3 Level 3 （10V/m）
IEC 61000-4-4 Level 3 （1V/2V）
IEC 61000-4-6 Level 3 （10V/m）
IEC 61000-4-8 Level4（30A/m）
IEC 61000-4-11 Level3 （10V）
CLASS A
IEC 61000-4-2 Level 4 （15KV/30KV）
Free fall 0.5m |
|
Certification |
CE, FCC, RoHS |
|
MTBF |
>100,000 Hours |
Download
Datasheet
Thông tin đặt hàng
|
Model No. |
Description of Goods |
|
JHA-IG1F8H |
Unmanaged Industrial Ethernet Switch, 1 10/100/1000Base-T(X) and 8 10/100Base-T(X), DIN-Rail, DC10-58V, -40-85°C Operating Temperature |
| Power Supply: DC24V DIN-Rail Power Supply or Power Adapter is Optional. |
