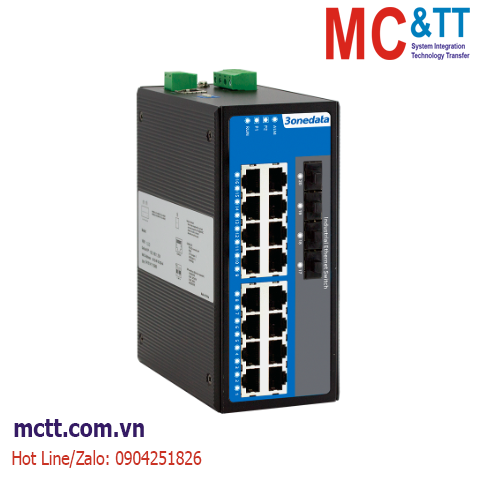

Switch công nghiệp quản lý 16 cổng Gigabit Ethernet 3Onedata IES7120G-16GT

Chia sẻ:
Mã sản phẩm: IES7120G-16GT
Thương hiệu: 3onedata
Tình trạng:

16-port Gigabit Layer 2 Managed Industrial Ethernet Switch

Liên hệ
Mô tả

Switch công nghiệp quản lý 16 cổng Gigabit Ethernet 3Onedata IES7120G-16GT

Chúng tôi – MC&TT đại diện phân phối sản phẩm hãng 3Onedata tại Việt Nam, xin thông báo:

IES7120G-16GT đã dừng sản xuất và được nâng cấp thay thế bằng IES6320-16GT-2P48

IES7120G series are 16/20-port full Gigabit layer 2 managed industrial Ethernet switches. This series of products provide Gigabit copper port and Gigabit SFP slot. It adopts DIN-Rail mounting to meet the requirements of different application scenes.

Network management system supports various network protocols and industrial standards, such as STP/RSTP/MSTP, 802.1Q VLAN, QoS, IGMP Static Multicast, LLDP, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, 802.1X Authentication, Network Diagnosis, Rapid Configuration, Online Upgrading and so on, and supports CLI, WEB, Telnet, SNMP and other access methods. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.

Power supply input is two independent power supply circuits, which can ensure the device normal operation when one of the power supplies breaks down. Design of DIP switch can achieve the device rebooting and restore factory defaults. When power supply or port link failure occurs, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.

Tính năng

  • Support 4 Gigabit fiber ports (SFP slots) optional, 16 Gigabit copper ports

  • Adopt SW-Ring patent technology, support single ring, coupling ring, chain ring, Dual-homing ring network function

  • Support dual power supply input, input voltage: 12~48VDC

  • Support -40~75℃ wide operating temperature range

Thông số kỹ thuật

Standard & Protocol IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1X for 802.1X Authentication
IEEE 802.1AB for LLDP
IEEE 802.3ad for LACP
Management SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, Port Mirroring, QoS, LLDP, DHCP Server, DHCP Client, File Management, Log Management, Port Statistics
Security Classification of User Permissions, Anti-attack Control, ACL, 802.1X Authentication, Port Alarm, Power Supply Alarm, E-mail Alarm, Storm Suppression, SSHD Configuration, Telnet Configuration, HTTPS Configuration
Switch Function 802.1Q Vlan, Static/Dynamic Port Aggregation, Bandwidth Management, Flow Control, Port Isolation
Unicast / Multicast Static Multicast, GMRP, IGMP-Snooping
Redundancy Protocol SW-Ring, STP/RSTP/MSTP
Time Management SNTP
Interface Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

SFP slot: 1000Base-SFP

Console port: CLI command line management port (RS-232), RJ45

Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity 1A@24VDC or 0.5A@120VAC

LED Indicator Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
Switch Property Transmission mode: store and forward
MAC address: 16K
Packet buffer size: 12Mbit
Backplane bandwidth: 56G
Switch time delay: < 10μs
Power Requirement 12~48VDC, 4-pin 7.62mm pitch terminal blocks

Dual power supply redundancy, nonpolarity, reverse polarity protection, nonpolarity

Environmental Limit Operating temperature range: -40~75℃

Storage temperature range: -40~85℃

Relative humidity: 5%~95% (no condensation)

Physical Characteristic Housing: IP40 protection, metal
Installation: DIN-Rail mounting
Dimension (W x H x D): 70mm×160mm×130mm
Industrial Standard IEC 61000-4-2 (ESD), Level 3

IEC 61000-4-4 (EFT), Level 3

IEC 61000-4-5 (Surge), Level 3

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Certification CE, FCC, RoHS, UL61010



Quick Guide

Thông tin đặt hàng

Available Models Gigabit SFP Slot Gigabit Copper Port Power Supply Range
IES7120G-4GS 4 16  12~48VDC

dual power supply

IES7120G-16GT 0 16
