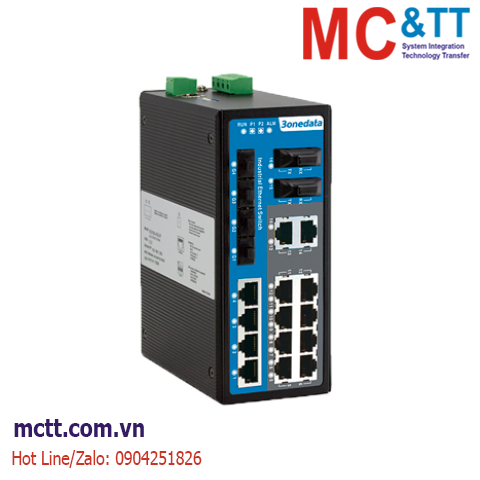

Switch công nghiệp quản lý 14 cổng Ethernet + 2 cổng quang + 4 cổng Gigabit SFP 3Onedata IES7120-4GS-2F

IES7120 series are 20-port 100M/Gigabit layer 2 managed industrial Ethernet switches. This series include three types of products and provide 100M copper ports, 100M fiber ports, Gigabit SFP slots. It adopts DIN-Rail mounting to meet the requirements of different application scenes.

Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, IGMP Static Multicast, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on, and supports CLI, WEB, Telnet, SNMP and other access methods. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.

Power supply input is two independent power supply circuits, which can ensure the device normal operation when one of the power supplies breaks down. DIP switch can restore factory defaults. When power supply or port link failure occurs, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.

Tính năng

  • Support 4 Gigabit fiber ports (SFP slot), 16 100M fiber and copper ports optional
  • Adopt SW-Ring patent technology, support single ring, coupling ring, chain ring, Dual-homing ring network function
  • Support dual power supply input, input voltage: 12~48VDC
  • Support -40~75℃ wide operating temperature range

Thông số kỹ thuật

Standard & Protocol IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX and 100Base-FX

IEEE 802.3z for 1000Base-X

IEEE 802.3x for Flow Control

IEEE 802.1D for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1Q for VLAN

IEEE 802.1p for CoS

Management SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, DHCP Server, DHCP Client, File Management, Port Statistics
Security Classification of User Permissions, Port Alarm, Power Supply Alarm, E-mail Alarm
Switch Function 802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control
Unicast / Multicast Static Multicast, GMRP, IGMP-Snooping
Redundancy Protocol SW-Ring, STP/RSTP
Time Management SNTP
Interface Copper port: 10Base-T/100Base-TX, RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

Fiber port: 100Base-FX, SC/ST/FC optional

SFP slot: 1000Base-SFP

Console port: CLI command line management port (RS-232), RJ45

Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity 5A@30VDC or 10A@125VAC

LED Indicator Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
Switch Property Transmission mode: store and forward
MAC address: 8K
Packet buffer size: 3Mbit
Backplane bandwidth: 12.8G
Switch time delay: < 10μs
Power Requirement 12~48VDC, 4-pin 7.62mm pitch terminal blocks

Dual power supply redundancy, nonpolarity, reverse polarity protection

Environmental Limit Operating temperature range: -40~75℃

Storage temperature range: -40~85℃

Relative humidity: 5%~95% (no condensation)

Physical Characteristic Housing: IP40 protection, metal
Installation: DIN-Rail mounting
Dimension (W x H x D): 70mm×160mm×130mm
Industrial Standard IEC 61000-4-2 (ESD), Level 4
  • Air discharge: ±15kV
  • Contact discharge: ±8kV

IEC 61000-4-4 (EFT), Level 4

  • Power supply: ±4kV
  • Ethernet interface: ±2kV
  • Relay: ±4kV

IEC 61000-4-5 (Surge), Level 2

  • Power supply: common mode ±1kV, differential mode ±500V
  • Ethernet interface: ±2kV
  • Relay: common mode ±1kV, differential mode ±500V

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Certification CE, FCC, RoHS



Quick Guide

Thông tin đặt hàng

Available Models Gigabit SFP Slot 100M Fiber Port 100M Copper Port Power Supply Range
IES7120-4GS 4 0 16 12~48VDC dual power supply
IES7120-4GS-2F 4 2 14
IES7120-4GS-4F 4 4 12
