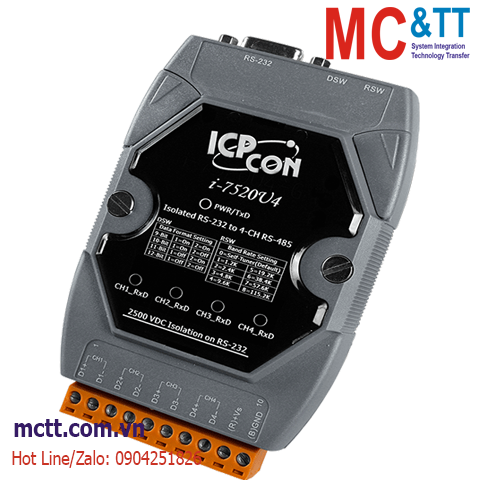

Bộ chuyển đổi (Bộ chia HUB) 1 cổng RS-232 Master sang 4 cổng RS-485 Slave ICP DAS I-7520U4-G CR
• True RS-485 Star Wiring Hub
• Power and data flow indicator for troubleshooting
• Easy-to-use rotary switch for fixed baud rate setting
• Independent RS-485 driver for each channel
• Automatic RS-485 Direction Control
• 120Ω termination resistor for each channel
RS-485 Active Star Wiring Hub
The I-7520U4 is isolated RS-232 to 4-ch RS-485 active star wiring hub, it has 4 independent RS-485 output channels and one RS-232 input channel. Each output channel is equipped with an individual driver. The data from a master to the input channel will simultaneously be forwarded to all the four output channels.
Baud Rate Setting
The I-7520U4 provides 2 modes of baud rate setting, one is Self-Tuner mode and the other is fixed baud rate mode. The Self-Tuner mode can support Multiple Baud Rate and Multiple Data Format.The Self-Tuner design is exactly the same as I-7520 series. The Fixed baud rate mode offers a better quality for data transmission over long or lossy lines or electrically noisy environments.
he Short-circuit protection can automatically shut off the breakdown channel, this kind of design can suffice to protect the communication system. When a connected RS-485 equipment breaks down, the breakdown channel will be isolated to ensure that other equipments work normally.
In some critical environments, you may need to add termination resistors to prevent the reflection of serial signals. The I-7520U4 includes a 120Ω termination resistor for each channel by jumper selectable (Default disable).
The I-7520U4 has 6 LED to indicate the power status and network traffic. The TxD/RxD LED will flash when the unit is being sent out or received data.
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
|ESD (IEC 61000-4-2)
|1 x Power and Communication
|1 x RS-232 Input (Master)
4 x RS-485 Output (Slave)
|300 ~ 115200 bps via Self-Tuner mode; 1200 ~ 115200 bps via Fixed Baud Rate mode
|+10 VDC ~ +30 VDC (Non-isolated)
|72 x 35 x 118 (W x L x H)
|-25 ~ +75 °C
|-30 ~ +75 °C
|10 ~ 90% RH, Non-condensing
|Isolated RS-232 to 4 Channels RS-485 Active Star Wiring Hub (Gray Cover) (RoHS)
