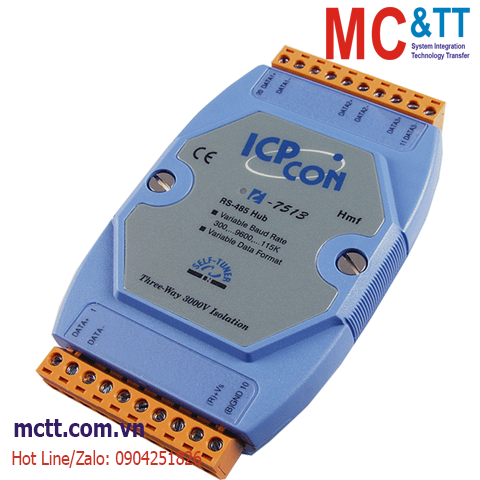

Bộ chia HUB 1 cổng RS-485 Master sang 3 cổng RS-485 Slave ICP DAS I-7513 CR

Chia sẻ:
Mã sản phẩm: I-7513
Thương hiệu: ICP DAS
Tình trạng:

Three Way Isolated RS-485 Active Star Wiring Hub

Liên hệ
Mô tả

Bộ chia HUB 1 cổng RS-485 Master sang 3 cổng RS-485 Slave ICP DAS I-7513 CR

Feature

• RS-485 Active Star Wiring Applications
• Automatic RS-485 Direction Control
• 3000 VDC Three Way Isolation Protection
• ESD Protection for the RS-485 Data Line

Introduction

The I-7513 is a 3-ch RS-485 Active Star Wiring Hub. The unit has three independent RS-485 output channels, each with their own driver, which can transmit signals across 4,000 ft (1200 m) of cable on each channel.

The I-7513 includes both Hub and Repeater functions, so each output channel can be connected to another hub.

The isolation site of the I-7513 is located in the input and output interface circuit. In other words, the I-7513 is a three-way isolation module.

Application

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

Isolation
Three-way Isolation 3000 VDC
EMS Protection
ESD (IEC 61000-4-2) Yes
LED Indicators
Status 1 x Power and Communication
COM Ports
Ports 1 x RS-485 Input (Master)
3 x RS-485 Output (Slave)
Baud Rate 300 ~ 115200 bps
Power
Input Range +10 VDC ~ +30 VDC (Non-isolated)
Consumption 2.16 W
Mechanical
Casing Plastic
Dimensions (mm) 72 x 35 x 122 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +75 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-7513     CR  Three Way Isolated RS-485 Active Star Wiring Hub (Blue Cover) (RoHS)
