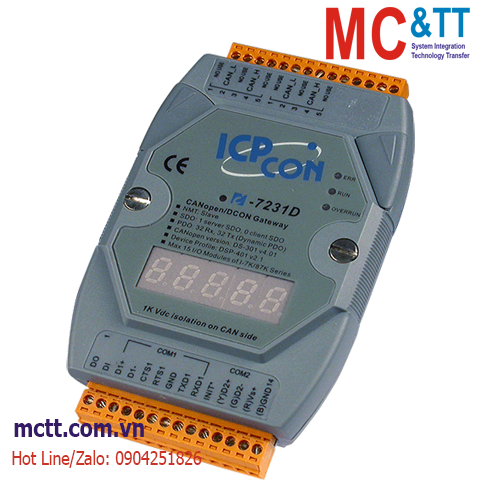

Bộ chuyển đổi Gateway CANopen Slave sang DCON Master ICP DAS I-7231D-G CR
Feature
• NMT: Slave
• Error Control: Node Guarding and Heartbeat Producer protocol
• Node ID: Setting by CAN_GW utility
• PDO Modes: Event-triggered, remotely requested, cyclic and acyclic SYNC
• PDO Mapping: variable
• No of SDOs: 1 server, 0 client
• Emergency Message: Yes
• CANopen Version: DS-301 v4.02
• Device Profile: DSP-401 v2.1
• CAN Baud Rate setting by utility: 10K, 20K, 50K, 125K, 250K, 500K, 800K, 1M bps
• DCON Baud Rate setting by utility: 115200 bps Max
• RUN, ERR and OVERRUN LED indicators
• Support max 15 I-7000/I-87K I/O series modules
• Provide friendly Utility to configure
• 7-segmemt LED to show Node ID, CAN baud rate and RS-485 baud rate
Introduction
DCON protocol is a kind of application protocol based on the RS-485 network. It is special for ICPDAS DCON I/O modules, such as I-7000 series and I-87K series modules. By way of using I-7231D to convert the electric signals and messages, the DCON I/O modules can be upgraded to the CANopen protocol based on the CAN bus. For CANopen protocol application, the I-7231D is a CANopen slave device. So, it can produce or consume the PDO messages, receive the SDO message with proper responses, and deal with the NMT messages from NMT master. For DCON protocol application, it is a DCON master device, and it will collect all of the I/O situations of the I-7000 and I-87K series modules connected with the RS-485 port of I-7231D. Therefore, If the I-7231D receive the command form CAN bus, it does the corresponding reactions for DCON I/O channels. In addition, we also provide the utility tool for users to configure the device parameters and build EDS file for the CANopen slave device. Therefore, users can easily apply I-7k and I-87K IO modules in any CANopen master interface via the EDS file.
Application
- Production cell builds and tests CPUs
- Beer brewery
- Equipment for food packing
- Fiberglass twist machine
- Sponge production plant
- Sponge production plant
- Overhead storage bin production
- Pocket-bread bakery
- Dinnerware production
- HVAC module production
- Trawler automation system
- LCD manufacturing plant
- Rolling steel door production
- Bottling line
- Tight manufacturing
Specifications
| CPU Module |
| Watchdog Timer |
Hardware watchdog |
| LED Indicators |
| Status |
MS LED, NS LED, IO LED |
| COM Ports |
| Ports |
1 x RS-232/485, Non-isolated |
| Baud Rate |
1200 ~ 115200 bps |
| Protocol |
DCON Master |
| CANopen |
| Controller |
NXP SJA1000T with 16 MHz clock |
| Ports |
1 |
| Baud Rate |
10 k ~ 1 M |
| Isolation |
1000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor |
Built-in 120Ω |
| Protocol |
CiA 301 v4.02 |
| Node ID |
1 ~ 255 |
| Error Control |
Node Guarding protocol / Heartbeat Producer |
| NMT |
Slave |
| EMCY Message |
Yes |
| Mechanical |
| Dimensions (mm) |
72 x 122 x 33 (W x H x D) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-7231D-G CR |
CANopen Slave / DCON Master Gateway (RoHS) |
