Module RS-485 DCON 5 kênh đầu ra DC SSR + 4 kênh đầu vào số DI ICP DAS I-7065BD CR

Chia sẻ:
Mã sản phẩm: I-7065BD
Thương hiệu: ICP DAS
Tình trạng:

4-ch Isolated (Wet, 4~30 VDC) DI and 5-ch DC-SSR Output Module with LED Display

Liên hệ
Mô tả

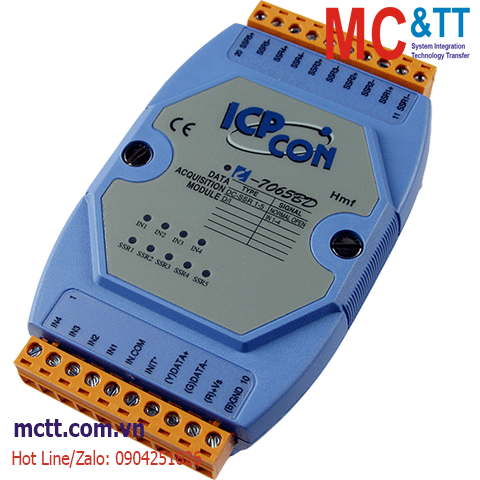

Module RS-485 DCON 5 kênh đầu ra DC SSR + 4 kênh đầu vào số DI ICP DAS I-7065BD CR

Features

  • 4 Digital Inputs and 5 DC SSR Outputs
  • Sink- or Source-type Digital Input
  • Form A DC Solid State Relay Output
  • No Arcing, No Bounce, and No Switching Noise
  • Digital Input Channels Can be Used as 16-bit Counters
  • Configurable Power-on Value and Safe Value Settings
  • Built-in Dual Watchdog

Introduction

The I-7063B module provides 8 digital input channels and 3 DC SSR output channels, and the I-7065B provides 4 digital input channels and 5 DC SSR output channels. All digital input channels can be used as 16-bit counters. In addition, the digital input channels can be selected either as sink- or source-type via wire connections. In comparison to electromechanical relays, SSR technology provides a faster response time and greater electrical endurance. The integration of DC SSR technology also eliminates potential for arcing, bounce, and switching noise. The I-7063BD provides 11 LED indicators and the I-7065BD/M-7065BD provides 9 LED indicators that can be used to monitor the status of the digital input and SSR output. There are also options for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments. The M-7065B supports both the Modbus RTU and DCON protocols, which can be configured via software.

Applications

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

CPU Module
Watchdog Timer Module, Communication (Programmable)
Display
Type I/O LED Indicator
Isolation
Intra-module Isolation 3750 VDC
EMS Protection
EFT (IEC 61000-4-4) ±2 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal
±8 kV Air for Random Point
LED Indicators
Status 1 x Power and Communication
9 x Digital Input/Relay Output
Digital Input/Counter
Channels 4
Type Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level +1 VDC Max.
OFF Voltage Level +4 ~ +30 VDC
Max. Counts 65535 (16-bit)
Frequency 100 Hz
Min. Pulse Width 5 ms
Input Impedance 3 kΩ
Overvoltage Protection ±35 VDC
Relay Output
Channels 5 (Form A)
Type DC-SSR
Contact Rating Form A:
3 ~ 30 VDC @ 1A
Leakage Current 0.1 mA
Operate Time 1 ms
Release Time 1 ms
Electrical Endurance Long Life, No Arcing, No Bounce, No Switching Noise
Surge Strength 3500 VDC
Power on Value Programmable
Safe Value Programmable
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 1.0 W
Mechanical
Dimensions (mm) 123 x 72 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-7065BD     CR  4-ch Isolated (Wet, 4~30 VDC) DI and 5-ch DC-SSR Output Module with LED Display using DCON Protocol (Blue Cover) (RoSH)
