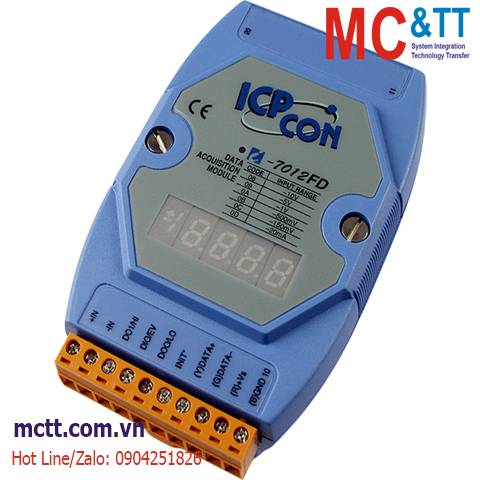

Module RS-485 DCON 1 kênh đầu vào tương tự AI+ 2 kênh DO + 1 kênh DI ICP DAS I-7012FD CR

Chia sẻ:
Mã sản phẩm: I-7012FD
Thương hiệu: ICP DAS
Tình trạng:

1-ch AI Module (Fast Sampling Version) with LED Display

Liên hệ
Mô tả

Module RS-485 DCON 1 kênh đầu vào tương tự AI+ 2 kênh DO + 1 kênh DI ICP DAS I-7012FD CR

Features

  • Current and Voltage Inputs
  • High Resolution: 16-bit
  • 50 Hz Event Counter for Digital Input
  • High/Low Alarm for Digital Output
  • 100 Hz High Sampling Rate
  • Built-in Dual Watchdog

Introduction

The I-7012 is an Analog Input module that is designed for both voltage and current input types. In addition, the module provides 1 Digital Input channel as a 50 Hz event counter and 2 Digital Output channels that can be used as a high/low alarm. The I-7012 also features 3000 VDC intra-module isolation. The I-7012F is an Analog Input module that is designed for both voltage and current input types. The sampling rate for the I-7012F is adjustable and can be switched between fast mode and normal mode depending on your requirements. In addition, the module provides 1 Digital Input channel as a 50 Hz event counter and 2 Digital Output channels that can be used as a high/low alarm. The I-7012F also features 3000 VDC intra-module isolation.

Applications

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

CPU Module
Watchdog Timer Module, Communication (Programmable)
Display
Type 5-Digit 7 Segment LED Display
Isolation
Intra-module Isolation 3000 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±2 kV Contact for each Terminal
Surge (IEC 61000-4-5) ±0.5 kV for Power Line
LED Indicators
Status 1 x Power and Communication
Analog Input
Channels 1 Differential
Type Voltage
Current
Range ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA (requires an optional external 125 Ω resistor)
Resolution 16-bit
Accuracy Normal Mode: ±0.05% of FSR
Fast Mode: ±0.25% of FSR
Sampling Rate Normal Mode: 10 Hz
Fast Mode: 100 Hz
Input Impedance 20 MΩ
Common Voltage Protection ±100 VDC
Overvoltage Protection ±120 VDC
Digital Input/Counter
Channels 1
Type Dry Contact
Sink/Source (NPN/PNP) Source
ON Voltage Level Close to GND
OFF Voltage Level Open
Max. Counts 65535 (16-bit)
Frequency 50 Hz
Input Impedance 3 kΩ
Overvoltage Protection ±30 VDC
Digital Output
Channels 2
Type Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +3.5 ~ +30 VDC
Load Current 30 mA/channel
Power on Value Programmable
Safe Value Programmable
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1)
Protocol DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 1.9 W
Mechanical
Dimensions (mm) 123 x 72 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-7012FD     CR  1-ch AI (Fast Sampling Version) Module with LED Display using DCON Protocol (16-bit) (Blue Cover) (RoHS)
