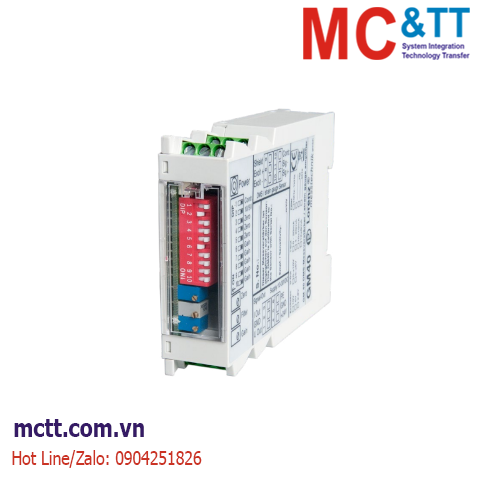

Bộ chuyển đổi tín hiệu Momen, lực, Load Cell, Strain Gauge sang tương tự Lorenz GM40

Chia sẻ:
Mã sản phẩm: GM40
Thương hiệu: Lorenz Messtechnik
Tình trạng: Còn hàng

Measuring Amplifier for Strain Gauge Sensors for DIN Mounting Rails, Voltage Output or Voltage and Current Output.

Liên hệ
Mô tả

Bộ chuyển đổi tín hiệu Momen, lực, Load Cell, Strain Gauge sang tương tự Lorenz GM40

The DIN mounting rail amplifier GM40 amplifies the signals of SG sensors to output signals conforming to standards. The narrow housing shape allows spacesaving mounting near the sensors in switch cabinets on standardized DIN mounting rails. A galvanically separated supply voltage range of 10 .. 30VDC and the analog outputs of ±5V/±10V resp. optional current output allow the direct signal processing with a PLC-Control. All control elements are reachable behind a detachable plexiglas panel on the front side.

The sensitivity adaption of the sensor takes place on-site by a DILswitch. Preload (tara) can be adjusted. A control signal switch allows to activate the control signal in the sensor (if available). By this, the adjustment and the subsequent evaluation can be checked at any time. Interference signals and transient conditions of the measured signal can be decreased by the input filter. The fine adjustment of the amplification and the zero point as well as the filter occurs through potentiometers.

Type: GM40
Technical Details: Measuring Amplifier for Strain Gauge Sensors for DIN Mounting Rails, Voltage Output or Voltage and Current Output.
PDF Datasheet: 081003_GM40_en.pdf
PDF Operation Manual: 090120m_GM40_en.pdf
