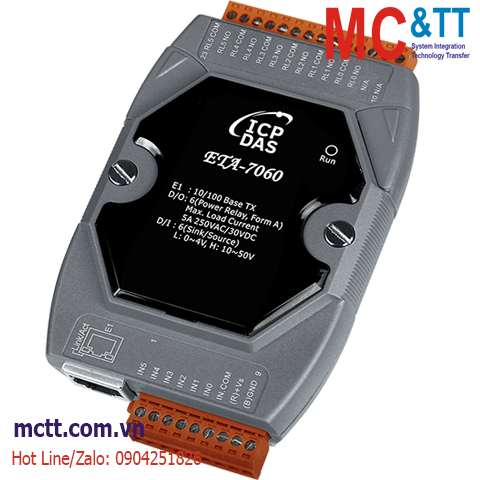

Module Ethernet Modbus TCP & MQTT 6 kênh DI+6 kênh Power Relay ICP DAS ETA-7060 CR
Features
- Built-in Web Server
- Support Modbus TCP/UDP and MQTT Protocols
- Powerful 32-bit MCU Handles Efficient Network Traffic
- Dual Watchdog
- I/O Pair Connection (Push and Pull)
- Support Web Configuration and Firmware Update via Ethernet
- Built-in I/O
- DI/Counter: 6 Channels
- Power Relay: 6 Channels
Introduction
The ETA-7060 provides 6 wet contact digital input channels and 6 form A electromechanical relays. It features optical isolation for 3000 VDC of transient overvoltage protection. Each input channel can be used as a 32-bit counter. The power-on value and safe value of the relay are programmable.
Note: When inductive loads are connected to the relays, a large counter electromotive force may occur when the relay actuates because of the energy stored in the load. These flyback voltages can severely damage the relay contacts and greatly shorten the relay life. Limit these flyback voltages at your inductive load by installing a flyback diode for DC loads or a metal oxide varistor for AC loads.
Applications
-
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, and Testing Equipment.
Specifications
| Software |
| Built-in Web Server |
Yes |
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| 2-way Isolation |
Ethernet: 1500 VDC
I/O: 3000 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±2 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
±0.5 kV for Power Line |
| LED Indicators |
| Status |
Run, Ethernet |
| Digital Input/Counter |
| Channels |
6 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
+10 to +50 VDC |
| OFF Voltage Level |
+4 VDC (max.) |
| Max. Counts |
4,294,967,295 (32-bit) |
| Frequency |
3 kHz |
| Min. Pulse Width |
1 ms |
| Input Impedance |
10 KΩ |
| Overvoltage Protection |
+70 VDC |
| Relay Output |
| Channels |
6 |
| Type |
Power Relay, Form A (SPST N.O.) |
| Contact Rating |
5 A @ 250 VAC/24 VDC (Resistive Load) |
| Operate Time |
10 ms (max.) |
| Release Time |
5 ms (max.) |
| Electrical Endurance |
10^5 ops. |
| Mechanical Endurance |
2 × 10^7 ops. |
| Power on Value |
Programmable |
| Safe Value |
Programmable |
| Ethernet |
| Ports |
1 x RJ-45, 10/100 Base-TX |
| Security |
Password and IP Filter |
| Protocol |
Modbus TCP, Modbus UDP, and MQTT |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
2.2 W |
| Powered from Terminal Block |
+10 to +30 VDC |
| Mechanical |
| Dimensions (mm) |
72 x 123 x 35 (W x L x H) |
| Installation |
DIN-Rail mounting |
| Environment |
| Operating Temperature |
-25 to +75°C |
| Storage Temperature |
-30 to +80°C |
| Humidity |
10 to 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ETA-7060 CR |
Ethernet I/O Module with 6-ch Power Relay and 6-ch DI (RoHS) |
