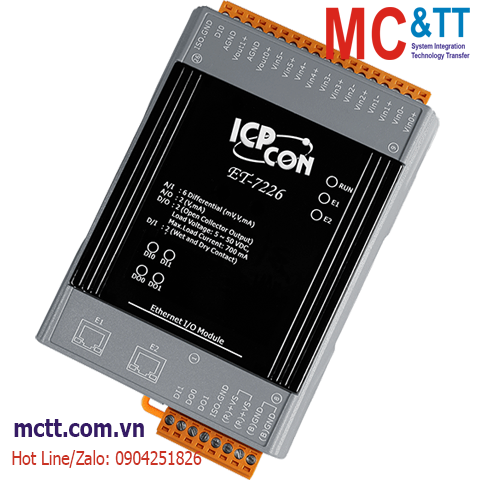

Module 2 cổng Ethernet Modbus TCP 6 kênh AI + 2 kênh AO + 2 kênh DI + 2 kênh DO ICP DAS ET-7226 CR

Chia sẻ:
Mã sản phẩm: ET-7226
Thương hiệu: ICP DAS
Tình trạng:

Ethernet I/O Module with 2-port Ethernet Switch, 6-ch AI, 2-ch AO, 2-ch DI and 2-ch DO

Liên hệ
Mô tả

Module 2 cổng Ethernet Modbus TCP 6 kênh AI + 2 kênh AO + 2 kênh DI + 2 kênh DO ICP DAS ET-7226 CR

Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • 2-port Ethernet Switch for Daisy-Chain Topology
  • Dual Watchdog
  • I/O Pair Connection
  • Built-in I/O
    • AI: 6 Channels
    • AO: 2 Channels
    • DI/Counter: 2 Channels
    • DO: 2 Channels

Introduction

The ET-7226 is a multi-function module with 6-channel analog inputs, 2-channel analog outputs, 2-channel digital inputs and 2-channel digital outputs. It provides various programmable analog inputs (+/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA), and analog outputs (+/-5 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA). Each analog input is allowed to configure a proper range with 240 Vrms high voltage protection. Each analog input/output can be programmed to accept current or voltage as input/output depending upon the position of corresponding jumper.

Applications

  • Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, and Testing Equipment.

Specifications

Software
Built-in Web Server Yes
CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
2-way Isolation Ethernet: 1500 VDC
I/O: 2500 VDC
EMS Protection
EFT (IEC 61000-4-4) ±2 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
Surge (IEC 61000-4-5) ±2 kV for Power Line
LED Indicators
Status Run, Ethernet, I/O
Analog Input
Channels 6 (Differential)
Type Voltage
Current
Range ±500 mV, ±1 V, ±5 V, ±10 V
0 to 20 mA, ±20 mA, 4 to 20 mA
(Jumper Selectable)
Resolution 16-bit
Accuracy Normal Mode: ±0.1%
Fast Mode: ±0.5% or better
Sampling Rate Normal Mode: 10 Hz (total channels)
Fast Mode: 50 Hz (total channels)
Input Impedance Voltage: 2 MΩ
Current: 125 Ω
Common Mode Rejection 86 dB (min.)
Normal Mode Rejection 100 dB
Common Voltage Protection ±200 VDC
Overvoltage Protection 240 Vrms
Overcurrent Protection 50 mA at 110 VDC (max.)
Individual Channel Configuration Yes
Open Wire Detection For 4 to 20 mA only
Zero Drift ±20 μV/°C
Span Drift ±25 ppm/°C
Isolation ±400 VDC, Virtual Channel to Channel Isolation
Analog Output
Channels 2
Type Voltage
Current
Range +0 to +5 VDC, ±5 VDC, +0 to +10 VDC, ±10 VDC
0 to 20 mA, 4 to 20 mA
(Jumper Selectable)
Resolution 12-bit
Accuracy ±0.1% of FSR
Open Wire Detection For 4 to 20 mA only
Voltage Output Capability 10 V @ 20 mA
Current Load Resistance 500 Ω
Individual Channel Configuration Yes
Power-on Value Programmable
Safe Value Programmable
Digital Input/Counter
Channels 2
Type Dry Contact
Wet Contact
ON Voltage Level Dry: Close to GND
Wet: +1 VDC (max.)
OFF Voltage Level Dry: Open
Wet: +3.5 to +30 VDC
Max. Counts 4,294,967,295 (32-bit)
Frequency 100 Hz
Min. Pulse Width 5 ms
Effective Distance 500m (max.)
Overvoltage Protection +30 VDC
Digital Output
Channels 2
Type Isolated Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +5 to +50 VDC
Load Current 700 mA/channel
Overvoltage Protection +60 VDC
Overload Protection 1.4 A
Short-circuit Protection Yes
Power on Value Programmable
Safe Value Programmable
Ethernet
Ports 2 x RJ-45, 10/100 Base-TX, Swtich Ports
LAN bypass Yes
Security ID, Password and IP Filter
Protocol Modbus TCP, Modbus UDP
Power
Reverse Polarity Protection Yes
Consumption 5.0 W (max.)
Powered from Terminal Block +12 to +48 VDC
Mechanical
Dimensions (mm) 76 x 120 x 38 (W x L x H)
Installation DIN-Rail mounting
Environment
Operating Temperature -25 to +75°C
Storage Temperature -30 to +80°C
Humidity 10 to 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

ET-7226     CR  Ethernet I/O Module with 2-port Ethernet Switch, 6-ch AI, 2-ch AO, 2-ch DI and 2-ch DO (RoHS)
