Module EtherCAT Slave 3 kênh đầu vào bộ đếm Encoder ICP DAS ECAT-2093 CR

Chia sẻ:
Mã sản phẩm: ECAT-2093
Thương hiệu: ICP DAS
Tình trạng:

EtherCAT Three-Channel Incremental Encoder Counter

Liên hệ
Mô tả

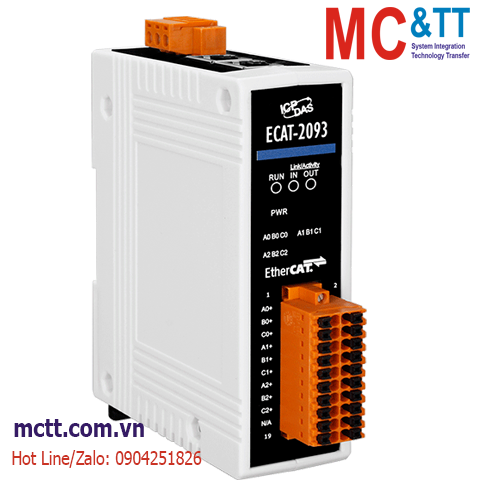

Module EtherCAT Slave 3 kênh đầu vào bộ đếm Encoder ICP DAS ECAT-2093 CR


• EtherCAT slave
• Three channels, 32-bit incremental encoder counters
• Encoder counting mode: CW/CCW, Pulse/Direction, A/B Phase
• Flexible channel assignment for Index counter latch function
• Position difference value for speed calculation
• Digital input filter
• Polarity setting by software for active high or active low encoder input
• EtherCAT:
      ‣ 2 x RJ-45 bus interface
      ‣ Supports Free-Run, SM synchron and Distributed Clock (DC) operation modes

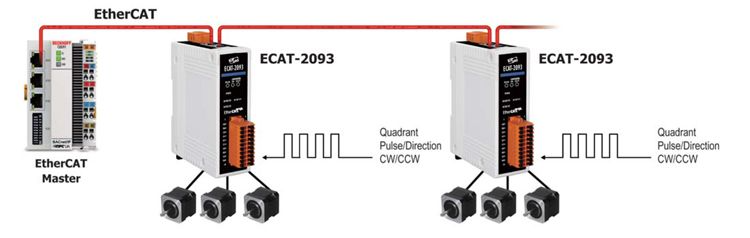

The EtherCAT slave ECAT-2093 is an incremental encoder counter which provides three independent high-speed counter channels. It reads the pulse train generated by an incremental encoder and can be used in positioning feedback applications. Each channel has two counter inputs. The inputs can either be single-ended or differential signals. Three counting modes are supported: clockwise/counterclockwise, pulse/direction and quadrant counting mode. The hardware index latch function allows the latching of encoder position of an assigned channel. The velocity  calculation function provides the position difference updated every delta time. Low pass filter functions for filtering out electrical noises are provided.


• Position measurement
• Image capture
• Automated optical inspection
• Line-scan vision inspection
• Data acquisition


EMS Protection
EFT (IEC 61000-4-4) Signal: 1 KV Class A; Power: 1 KV Class A
ESD (IEC 61000-4-2) 4 KV Contact for each channel
Surge (IEC 61000-4-5) 1 KV Class A
LED Indicators
Status Power, EtherCAT, status, signal
Encoder Input
No. of Axes 3x encoder counter (A, B, Z), differential or single-ended
Resolution 32 Bit
Photo-isolation 2500 VDC
Mode CW/CCW, Pulse/Direction, A/B Phase
Input Level 5V (default)
12V/24V with internal resistor (set by jumper)
Frequency 4 MHz
External Latch Input
Input Level 5V (default)
12V/24V with internal resistor (set by jumper)
Protocol EtherCAT
Ports 2 x RJ-45
Distance Between Stations Max. 100 m (100BASE-TX)
Data Transfer Medium Ethernet/EtherCAT cable (Min. CAT5), shielded
Input Range +20 VDC ~ +30 VDC
Consumption 4.5 W Max.
Casing UL 94V-0 housing
Dimensions (mm) 110 x 90 x 33 (L x W x H) (without connectors)
Installation DIN-Rail
Operating Temperature -25 ~ +70 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% , No condensating




Ordering Information

ECAT-2093     CR  EtherCAT three-channel incremental encoder counter (RoHS)
