Module EtherCAT Slave điều khiển 1 trục động cơ bước ICP DAS ECAT-2091S CR

Chia sẻ:
Mã sản phẩm: ECAT-2091S
Thương hiệu: ICP DAS
Tình trạng:

Single Axis Stepper Motor Controller/Driver

Liên hệ
Mô tả

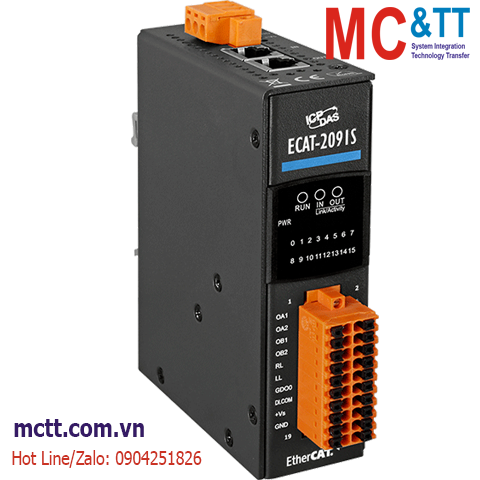

Module EtherCAT Slave điều khiển 1 trục động cơ bước ICP DAS ECAT-2091S CR

Features

• 1 x Stepper motor (2-phase bipolar stepper motor)
• Drive capability up to 1.5 A/phase coil current (with proper cooling and airflow up to 2.0 A/phase)
• Voltage range of the motor: 6 to 46 VDC
• 1 x 5V power supply for encoder. Limitation: the output current should not exceed 150 mA
• 1 x Encoder interfaces (A, B, Z), differential
• 2 x Digital input: Reference switch input, latch input
• 1 x Digital output
• Highest resolution: 256 microsteps per full step
• Automatic current reduction to reduce heat when motor is not moving
• Over-temperature protection
• Optically isolated I/O
• LED indicators for I/O, EtherCAT and motion status
• EtherCAT:
      ‣ 2 x RJ-45 bus interface
      ‣ Distance between stations up to 100 m (100BASE-TX)
      ‣ Support daisy chain connection
      ‣ EtherCAT conformance test tool verified
      ‣ Supports Free-Run, SM synchron and Distributed Clock (DC) operation modes
• Removable terminal block connector

Introduction

The ECAT-2091S stepper motor controller is a cost-effective, two-phase bipolar stepper driver. A motor voltage range between 6 and 46V DC and a peak motor coil current of 1.5 A/phase without cooling is being supported. When operating in a properly ventilated environment (cooling fan) the ECAT-2091S can drive the axis at a current level of up to 2.0 A/phase. The maximum running motor current, microstep resolution and other motion parameters are software selectable.

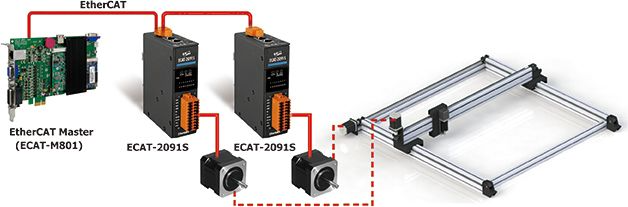

The ECAT-2091S is a standard EtherCAT slave and an EtherCAT master is required to operate the device. The ECAT-2091S supports three operation modes: Free-Run, SM synchron and Distributed Clock (DC).

Two-phase bipolar stepper motors can be directly connected to the ECAT-2091S device. The device is designed to operate in a open loop. Configuration and motion control has to be done by the EtherCAT master and the application program. The coil current and step control is beina done by a stepper motor driver IC. An integrated ramp generator automatically calculates the acceleration and deceleration distance. In position mode the controller drives the motor to the target position and in velocity mode accelerates the motor to the target velocity. A minimum set of configuration data consists of acceleration, deceleration and maximum motion velocity. After receiving the target position the motor driver starts controlling the motion movement. All motion parameters can be changed on the fly.

The ECAT-2091S has a 32 bit high frequency encoder counter which counts the input signal of an external incremental encoder. The encoder can for example be used for homing purposes and for consistency checks.

High resolution of up to 256 microsteps per full step is supported for a ensuring smooth and precise motor operation.

Two digital input channels are provided. The digital inputs can be set to act as a simple DI, as a left and right hardware limit switch which automatically stops the motor when activated, or a latch trigger for latching the current motor and encoder position.

The module must be supplied by two power sources. A motor supply and a 24Vdc control supply

Applications

• Automated Test Equipment
• Surveillance Systems
• Labeling Machinery
• Packaging
• Semiconductor Manufacturing
• Engraving Machine
• Automatic Feeding Machine

Specifications

EMS Protection
EFT (IEC 61000-4-4) Signal: 1 KV Class A; Power: 1 KV Class A
ESD (IEC 61000-4-2) 4 KV Contact for each channel
Surge (IEC 61000-4-5) 1 KV Class A
LED Indicators
Status 1 x Power
1 x Operation State
2 x Communication
2 x DI status
1 x DO status
6 x Motion status
Encoder Input
No. of Axes 1, differential
Mode A/B phase, CW/CCW, Pules/Dir
Frequency 4 MHz Max.
Motor Output
No. of Axes 1x Stepper motor, 2 phases
Current Controller Frequency 24.5 kHz
Microsteps Per Step 256, 128, 64, 32, 16, 8, 4, 2
Output Current Peak 1.5 A/phase
(with proper airflow up to 2.0 A/phase)
Step Frequency 8.388 MHz Max.
Voltage Range of The Motor Output 6 to 46 VDC
Digital Input
Channels 2 x Limit position
Type Wet Contact
ON Voltage Level 19 ~ 30 VDC
OFF Voltage Level 11 VDC Max.
Isolation 3750 VDC
Digital Output
Channels 1
Type Open collector
Load Voltage +5 to 30 VDC
Load Current 100 mA
Isolation 3750 VDC
EtherCAT
Ports 2 x RJ-45
Distance Between Stations 100 m Max. (100Base-TX)
Data Transfer Medium Ethernet/EtherCAT Cable (Min. CAT 5), Shielded
Cycle Time 0.5 Millisecond
(1.0 Miliseconds -if all PDOs are selected )
Distributed Clocks Yes
Power
Input Range +20 VDC ~ +30 VDC
Mechanical
Casing Metal
Dimensions (mm) DIN-rail mounting: 33 x 120 x 116 (W x L x H)
Wall mounting: 33 x 159 x 110 (W x L x H)
Installation DIN-rail mounting or wall mounting
Environment
Operating Temperature -25 ~ +40 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

ECAT-2091S     CR  EtherCAT single axis stepper motor controller/driver (Metal Case) (RoHS)
Includes 4SIN1K0000067 Wall mount (W: 28 mm)
