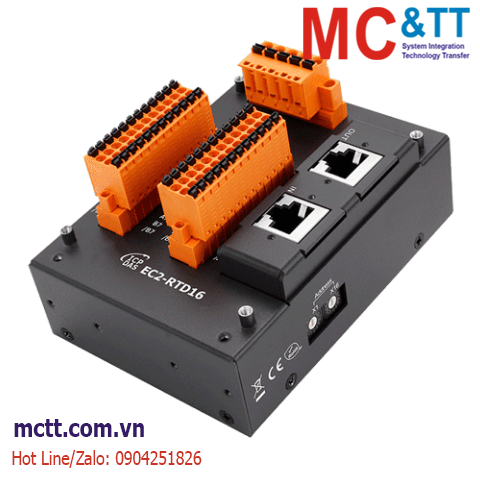

Module EtherCAT Slave 16 kênh đầu vào nhiệt độ RTD ICP DAS EC2-RTD16 CR
The EC2-RTD16 is an industrial slave I/O module built in 16 RTD intputs. That provides 90Hz high-speed measurement and open wire detection for each channel. Each channel can be connected to diff erent types of RTD sensors and supports 3-wire RTD lead wire compensation, ensuring accurate measurements regardless of wire length. It is equipped with the EtherCAT protocol and installed by daisy chain connection that provides a more scalable system with fewer wires. The EC2-RTD16 has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.
Features
- On the fly processing: EtherCAT
- 2 x RJ-45 bus interface
- Distance between stations up to 100 m (100 BASE-TX)
- Support daisy chain connection
- Built-In 16-channel RTD Intputs
Applications
| EMS Protection |
| EFT (IEC 61000-4-4) |
Signal: 1 KV Class B; Power: 1 KV Class B |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) |
± 1 kV Class A |
| Analog Input |
| Channels |
16 |
| Type |
Pt100, Ni120, Cu50, Cu100 |
| Resolution |
16-bit |
| Accuracy |
Fast Mode：±0.1 % of FSR ( 25℃ )
Normal Mode：±0.05 % of FSR ( 25℃ ) |
| Sampling Rate |
Fast Mode：90 Hz ( per channel )
Normal Mode：1.5Hz ( per channel ) |
| Input Impedance |
> 1 MΩ |
| Individual Channel Configuration |
Yes |
| Open Wire Detection |
Yes |
| 3-wire RTD Lead Resistance Elimination |
Yes |
| EtherCAT |
| Ports |
EtherCAT, 2 X RJ45 |
| Node ID |
Up to 256 |
| Distance Between Stations |
Max. 100 m (100 Base-Tx) |
| Data Transfer Medium |
Ethernet/EtherCAT cable (min. CAT5), shielded |
| Cycle Time |
100 us |
| Distributed Clocks |
Yes |
| Power |
| Input Range |
+24 VDC |
| Consumption |
3 W |
| Mechanical |
| Casing |
Metal with IP40 |
| Dimensions (mm) |
83 x 112 x 68 (W x L x D) |
| Installation |
DIN-Rail or Wall Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Specifications
Download
Datasheet
Documents
Ordering Information
| EC2-RTD16 CR |
EtherCAT Slave I/O Module with 16-channel RTD Inputs (RoHS) |
